Description
General part information

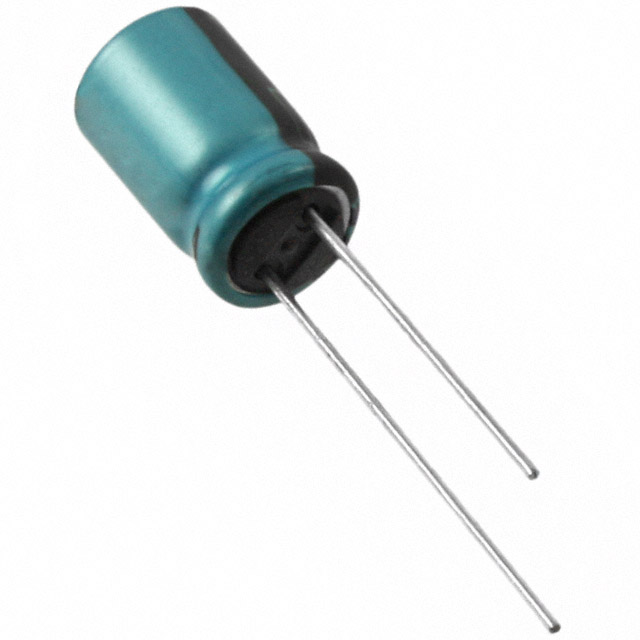

100RX304.7MT78X11.5
4.7 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 100RX304.7MT78X11.5 |
|---|---|
| Applications | Automotive |
| Capacitance | 4.7 µF |
| Height - Seated (Max) | 0.531 in |
| Impedance | 1.3 Ohms |
| Lead Spacing | 0.138 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 42 mA |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
