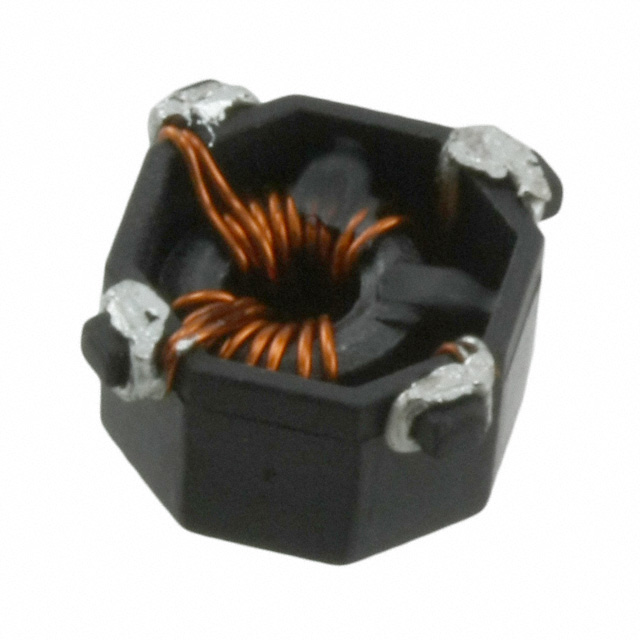

CMS2-3-R
57 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 3.6A DCR 12mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS2-3-R |
|---|---|
| Current Rating (Max) | 3.6 A |
| DC Resistance (DCR) (Max) | 12 mOhm |
| DC Resistance (DCR) (Typ) | 12 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.236 in |
| Inductance | 57 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 160 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.35 in |
| Size / Dimension Width | 0.35 in |
