PL74-47BR

Active

Cinch Connectivity Solutions Trompeter

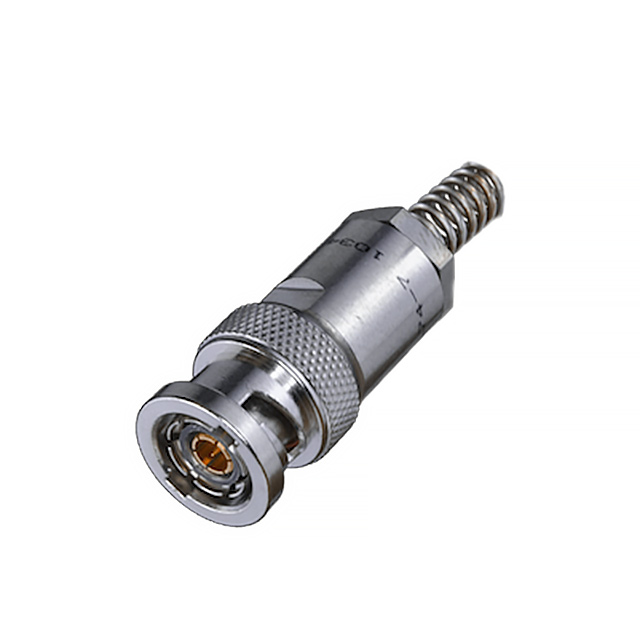

CONN TRB PLUG STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG STR SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	PL74-47BR	PL74 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	M17/176-00002	M17/176-00002, Raychem 10614, Raychem 10602
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Twinaxial/Triaxial, TRB	Twinaxial/Triaxial, TRB
Connector Type	Plug, Male Pin (Concentric)	Plug, Male Pin (Concentric)
Contact Termination	Solder	Solder, Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Strain Relief, 1 Connector	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Wrench Clamp	Wrench Clamp, Crimp
Voltage Rating	400 V	400 V

CONN TRB PLUG STR SOLDER

Part	Connector Style	Center Contact Material	Includes	Housing Color	Cable Group	Mating Cycles	Number of Ports	Contact Termination	Body Finish	Impedance	Center Contact Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Frequency - Max [Max]	Connector Type	Voltage Rating	Fastening Type	Shield Termination
Cinch Connectivity Solutions Trompeter PL74-47BR	TRB, Twinaxial/Triaxial	Beryllium Copper	1 Connector, 1 Strain Relief	Silver	M17/176-00002	500	1	Solder	Nickel	Non-Constant	Gold	Free Hanging (In-Line)	-65 ░C	165 °C	Brass	500 MHz	Plug, Male Pin (Concentric)	400 V	Bayonet Lock	Wrench Clamp
Cinch Connectivity Solutions Trompeter PL74C-221	TRB, Twinaxial/Triaxial	Beryllium Copper	1 Connector, 1 Heat Shrink, 1 Strain Relief	Silver	Raychem 10614	500	1	Crimp	Nickel	Non-Constant	Gold	Free Hanging (In-Line)	-65 ░C	165 °C	Brass	500 MHz	Plug, Male Pin (Concentric)	400 V	Bayonet Lock	Crimp
Cinch Connectivity Solutions Trompeter PL74C-204	TRB, Twinaxial/Triaxial	Beryllium Copper	1 Connector, 1 Heat Shrink, 1 Strain Relief	Silver	Raychem 10602	500	1	Crimp	Nickel	Non-Constant	Gold	Free Hanging (In-Line)	-65 ░C	165 °C	Brass	500 MHz	Plug, Male Pin (Concentric)	400 V	Bayonet Lock	Crimp
Cinch Connectivity Solutions Trompeter PL74C-201	TRB, Twinaxial/Triaxial	Beryllium Copper	1 Connector, 1 Heat Shrink, 1 Strain Relief	Silver	M17/176-00002	500	1	Crimp	Nickel	Non-Constant	Gold	Free Hanging (In-Line)	-65 ░C	165 °C	Brass	500 MHz	Plug, Male Pin (Concentric)	400 V	Bayonet Lock	Crimp
