AIAP-03-123K
ActiveAbracon LLC
FIXED IND 12MH 257MA 10 OHM TH
AIAP-03-123K
ActiveAbracon LLC
FIXED IND 12MH 257MA 10 OHM TH
Description
General part information
AIAP-03-123K

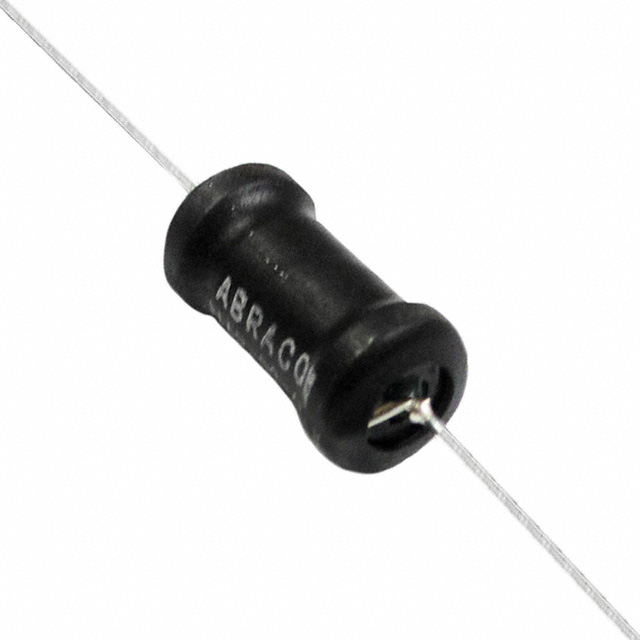

12 mH Unshielded Wirewound Inductor 257 mA 10Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | AIAP-03-123K |
|---|---|
| Current Rating | 257 mA |
| DC Resistance (DCR) (Max) | 10 Ohm |
| Inductance | 12 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.449 in |
| Size / Dimension Length | 0.902 in |
| Tolerance | 10 % |
| Type | Wirewound |
