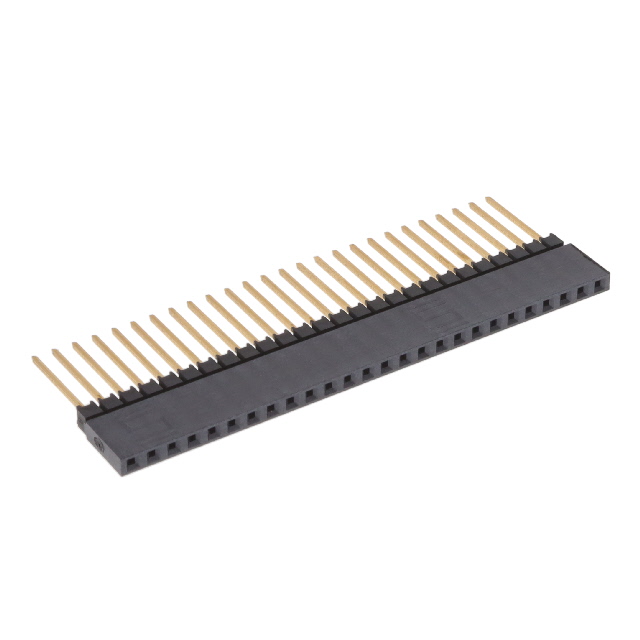

ESQ-126-39-G-S
ActiveSamtec Inc.
CONN SOCKET 26POS 0.1 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESQ-126-39-G-S |
|---|---|
| Connector Type | Elevated Socket |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Length - Post | 0.48 in |
| Contact Length - Post | 12.19 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 5.7 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.435 in |
| Insulation Height | 11.05 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
| Voltage Rating | 550 VAC |
ESQ-106 Series
PC / 104 Connectors Elevated Socket Strip, 0.100" Pitch
...
| Part | Mounting Type | Voltage Rating | Contact Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish - Post | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Shape | Contact Length - Post | Contact Length - Post | Insulation Material | Termination | Fastening Type | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Current Rating (Amps) | Number of Rows | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 105 ░C | -55 °C | UL94 V-0 | Tin | 26 | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Square | 4.83 mm | 0.19 in | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | 2.54 mm | 0.1 in | Forked | 5.7 A | 2 | ||||||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 105 ░C | -55 °C | UL94 V-0 | Tin | 24 | 0.1 in | 2.54 mm | 11.05 mm | 0.435 in | All | Square | 2.29 mm | 0.09 " | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | Forked | 5.7 A | 1 | ||||||||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 125 °C | -55 °C | UL94 V-0 | Tin | 0.1 in | 2.54 mm | 11.05 mm | 0.435 in | All | Square | 0.48 in | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | 2.54 mm | 0.1 in | Forked | 5.7 A | 2 | 12.19 mm | 10 çin | 0.25 çm | Gold | ||||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 125 °C | -55 °C | UL94 V-0 | Gold | 6 | 0.1 in | 2.54 mm | 16.13 mm | 0.635 in | All | Square | 2.29 mm | 0.09 " | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | 2.54 mm | 0.1 in | Forked | 5.7 A | 2 | 20 µin | 0.51 µm | Gold | 3 µin | 0.076 µm | |||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 105 ░C | -55 °C | UL94 V-0 | Tin | 9 | 0.1 in | 2.54 mm | 11.05 mm | 0.435 in | All | Square | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | Forked | 5.7 A | 1 | 0.29 " | 7.37 mm | ||||||||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 125 °C | -55 °C | UL94 V-0 | Gold | 14 | 0.1 in | 2.54 mm | 11.05 mm | 0.435 in | All | Square | 2.29 mm | 0.09 " | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | Forked | 5.7 A | 1 | 20 µin | 0.51 µm | Gold | 3 µin | 0.076 µm | |||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 105 ░C | -55 °C | UL94 V-0 | Tin | 10 | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Square | 4.83 mm | 0.19 in | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Push-Pull | Black | 2.54 mm | 0.1 in | Forked | 5.7 A | 2 | ||||||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 105 ░C | -55 °C | UL94 V-0 | Tin | 18 | 0.1 in | 2.54 mm | 18.67 mm | 0.735 " | All | Square | 4.57 mm | 0.18 in | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | Forked | 5.7 A | 1 | ||||||||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 125 °C | -55 °C | UL94 V-0 | Gold | 26 | 0.1 in | 2.54 mm | 11.05 mm | 0.435 in | All | Square | 0.48 in | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | Forked | 5.7 A | 1 | 12.19 mm | 20 µin | 0.51 µm | Gold | 3 µin | 0.076 µm | |||||
Samtec Inc. | Through Hole | 550 VAC | Phosphor Bronze | Elevated Socket | 125 °C | -55 °C | UL94 V-0 | Gold | 18 | 0.1 in | 2.54 mm | 11.05 mm | 0.435 in | All | Square | Liquid Crystal Polymer (LCP) | Solder | Push-Pull | Black | 2.54 mm | 0.1 in | Forked | 5.7 A | 2 | 20 µin | 0.51 µm | Gold | 3 µin | 0.076 µm | 0.29 " | 7.37 mm |
