1109689
ObsoletePhoenix Contact

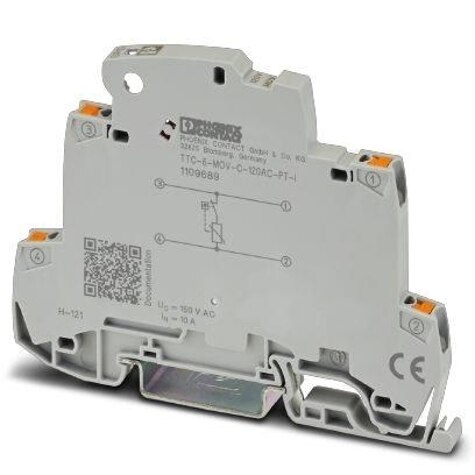

INDUSTRIAL SURGE PROTECTORS TTC-6-MOV-D-120AC-PT-I
1109689
ObsoletePhoenix Contact
INDUSTRIAL SURGE PROTECTORS TTC-6-MOV-D-120AC-PT-I
Description
General part information
1109689
INDUSTRIAL SURGE PROTECTORS TTC-6-MOV-D-120AC-PT-I
Technical Specifications
Parameters and characteristics for this part
| Specification | 1109689 |
|---|---|
| Approval Agency | cCSAus, CSAus, UL, CSA, CE, DNV GL |
| Current - Discharge (Nom) | 2.5 kA |
| Features | Visual Life Indicator, Remote Signaling Contacts |
| Form | Module, Base |
| Housing Material | Plastic |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Region Utilized | International |
| Type | Surge Protector, PDU, Surge Protection Module |
| Voltage - Continuous Operating (Max) (MCOV) AC | 150 VAC |
| Voltage - Continuous Operating (Max) (MCOV) DC | 150 VDC |
| Voltage - Protection Level (VP) (2416) | 500 V |
