56-50

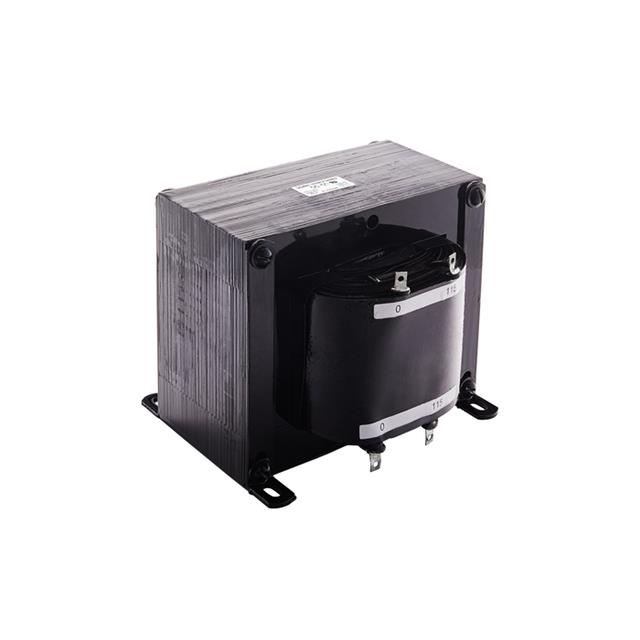

PWR XFMR LAMINATED 288VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | 56-50 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) Parallel | 100 A |
| Current - Output (Max) Series | 50 A |
| Height - Seated (Max) | 158.8 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 288 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 7.5 in |
| Size / Dimension Width | 7.5 in |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 125V, 115V, 105V, 230V |
| Voltage - Secondary (Full Load) (Parallel) | 28 V |
| Voltage - Secondary (Full Load) (Series) | 56 V |
| Weight | 57 lbs |
