CTHFW2915F-2R2M
ActiveCentral Technologies
SMD SHLDED POWER INDUCTOR
CTHFW2915F-2R2M
ActiveCentral Technologies
SMD SHLDED POWER INDUCTOR
Description
General part information
CTHFW2915F-2R2M

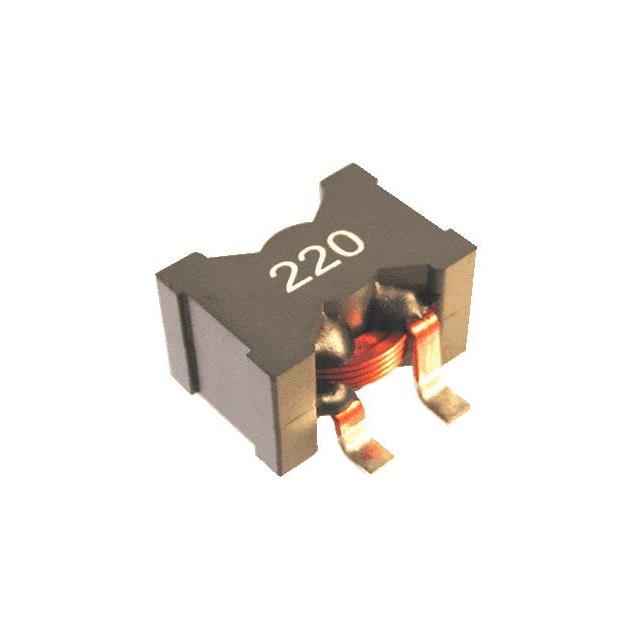

2.2 µH Shielded Wirewound Inductor 30 A 1.76mOhm Max 2-SMD, Gull Wing
Technical Specifications
Parameters and characteristics for this part
| Specification | CTHFW2915F-2R2M |
|---|---|
| Current - Saturation (Isat) | 100 A |
| Current Rating | 30 A |
| DC Resistance (DCR) (Max) | 1.76 mOhm |
| Height - Seated (Max) | 0.606 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Gull Wing, 2-SMD |
| Shielding | Shielded |
| Size / Dimension Length | 1.098 in |
| Size / Dimension Width | 1.098 in |
| Tolerance | 20 % |
| Type | Wirewound |
