CDH53NP-120LC
ActiveSumida America Components Inc.
FIXED IND 12UH 1.12A 180MOHM SMD
CDH53NP-120LC
ActiveSumida America Components Inc.
FIXED IND 12UH 1.12A 180MOHM SMD
Description
General part information
CDH53NP-120LC

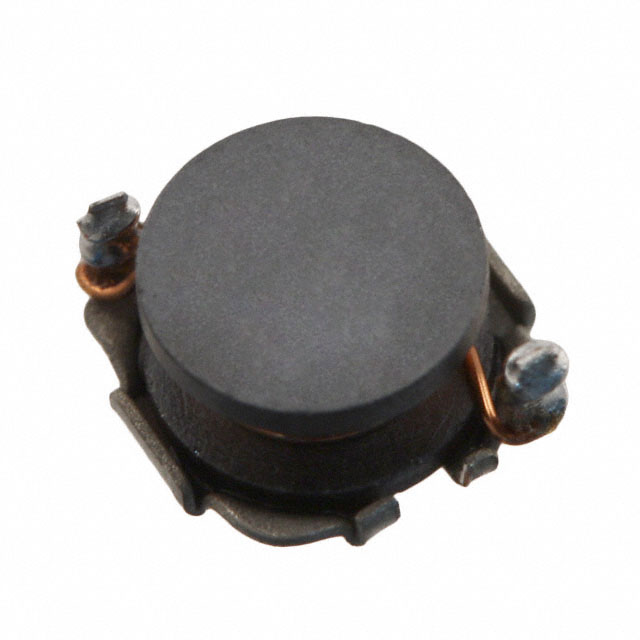

12 µH Unshielded Drum Core, Wirewound Inductor 1.12 A 180mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDH53NP-120LC |
|---|---|
| Current Rating | 1.12 A |
| DC Resistance (DCR) (Max) | 180 mOhm |
| Height - Seated (Max) | 0.126 in |
| Inductance | 12 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 15 % |
| Type | Drum Core, Wirewound |
