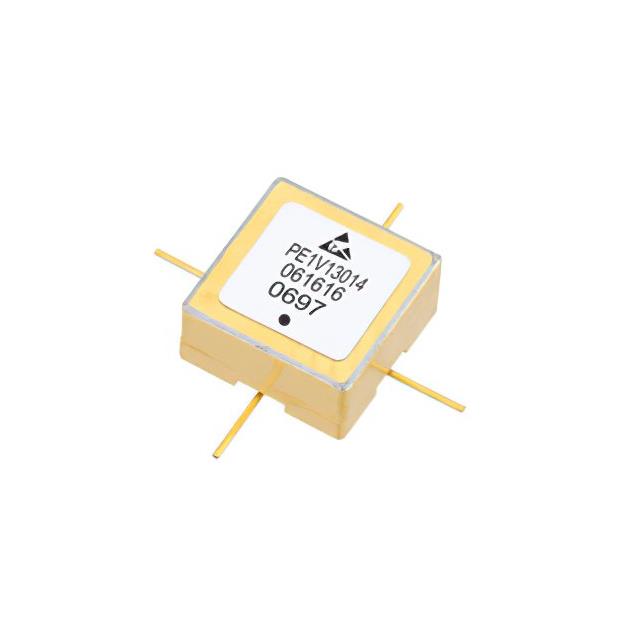

Specification	PE1V13014

2nd Harmonic (Typ) (dBc)	-16 dBc
Frequency - Center	3.25 GHz
Frequency Range (Max)	3.5 GHz
Frequency Range (Min)	3 GHz
Height	0.252 in
Icc Max	22 mA
Maximum Tuning Voltage (VDC)	10 V
Minimum Tuning Voltage (VDC)	0 V
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	4-SMD, Flat Leads
Phase Noise Typ (dBc/Hz)	-81 dBc/Hz
Power (dBm) (Nominal)	10 dBm
Power (dBm) Tolerance (Negative)	2 dBm
Power (dBm) Tolerance (Positive)	1.5 dBm
Pushing (MHz/V)	2.5 MHz/V
Size / Dimension Length	0.5 in
Size / Dimension Width	0.5 in
Voltage - Supply	11 V
