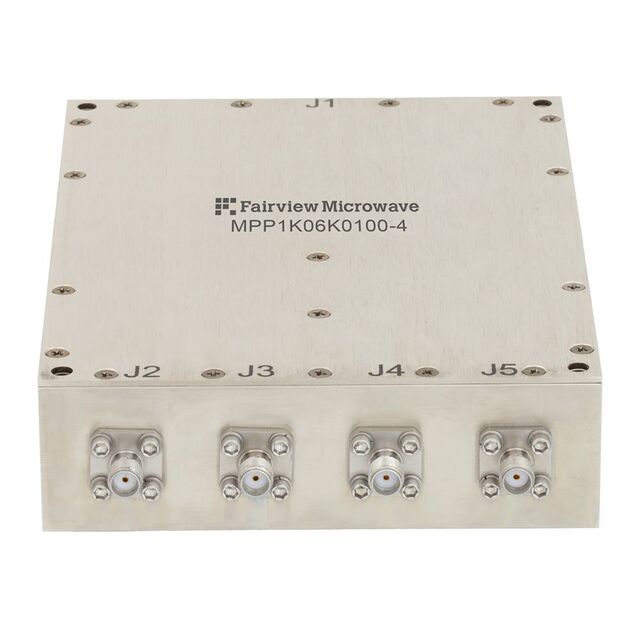

MPP1K06K0100-4
ActiveFairview Microwave
COMBINER SMA 1GHZ-6GHZ 4 WAY
MPP1K06K0100-4
ActiveFairview Microwave
COMBINER SMA 1GHZ-6GHZ 4 WAY
Description
General part information
MPP1K06K0100-4
RF Power Divider 1 GHz ~ 6 GHz Isolation (Min) 6dB, 6° Imbalance (Typ), 1.5 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | MPP1K06K0100-4 |
|---|---|
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 1 GHz |
| Imbalance (Max) | 6 ° |
| Imbalance (Typ) | 6 ° |
| Insertion Loss | 0.85 dB |
| Isolation (Min) | 6 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 1.169 in |
| Size / Dimension Length | 4.882 in |
| Size / Dimension Width | 3.902 in |
| VSWR (Max) | 1.5 |
