0606MSH
ActiveKanebridge
MACHINE SCREW - SLOTTED INDENTED
0606MSH
ActiveKanebridge
MACHINE SCREW - SLOTTED INDENTED
Description
General part information
0606MSH

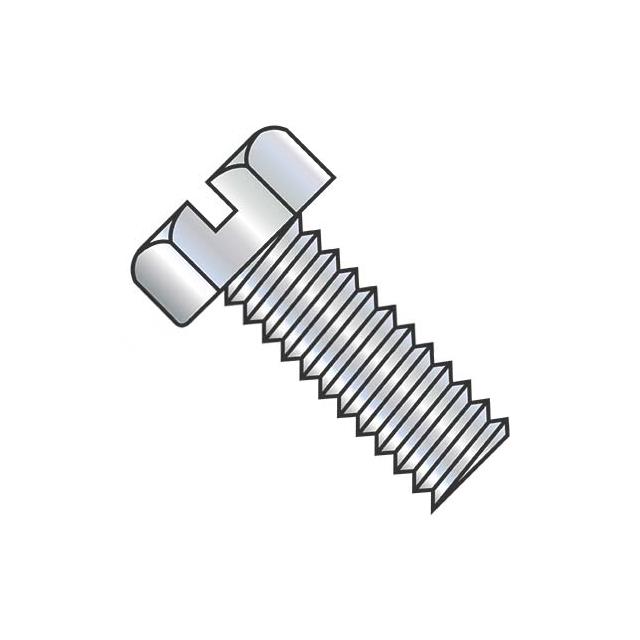

#6-32 Indented Hex Head Machine Screw Slotted Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0606MSH |
|---|---|
| Drive Type | Slotted |
| Features | Standard |
| Head Diameter | 0.247 in |
| Head Height | 0.087 in |
| Length - Below Head | 0.375 in |
| Length - Overall | 0.462 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Indented Hex Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 6 mm |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
