FMCA2681-200CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-BNCPLUG 78.7
FMCA2681-200CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-BNCPLUG 78.7
Description
General part information
FMCA2681-200CM

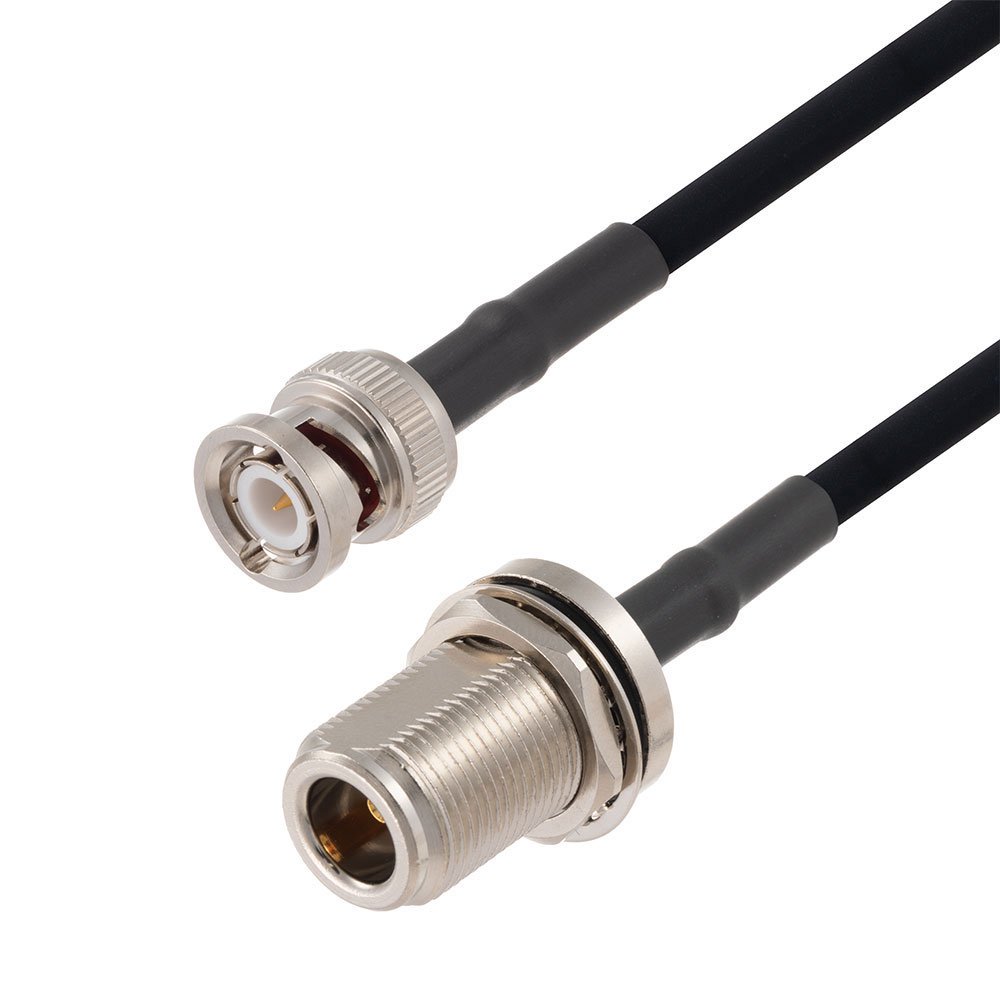

Cable Assembly Coaxial BNC to N-Type RG-223 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2681-200CM |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 4 GHz |
| Length (ft) | 6.6 ft |
| Overall Impedance | 50 Ohms |
| Style | N-Type, BNC |
