1-796433-1

Active

TE Connectivity AMP Connectors

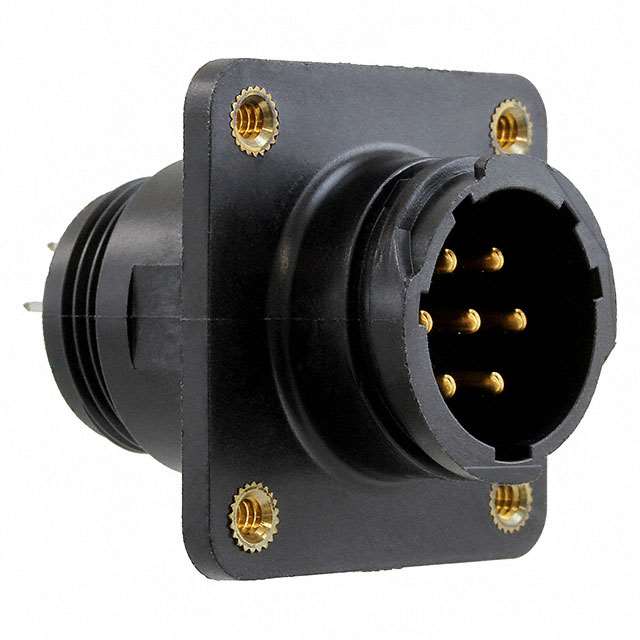

CONN RCPT MALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT MALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-796433-1

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold, PdNi +Gold
Contact Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	13-7
Termination	Solder
Voltage Rating	250 VAC

CONN RCPT MALE 7POS GOLD SOLDER

Part	Orientation	Contact Material	Voltage Rating	Primary Material	Mounting Type	Termination	Material Flammability Rating	Number of Positions	Mounting Feature	Shell Size - Insert	Connector Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1-796433-1	A	Brass	250 VAC	Plastic	Panel Mount, Through Hole	Solder	UL94 V-0	7	Flange	13-7	Male Pins, Receptacle	Gold, PdNi +Gold	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder
