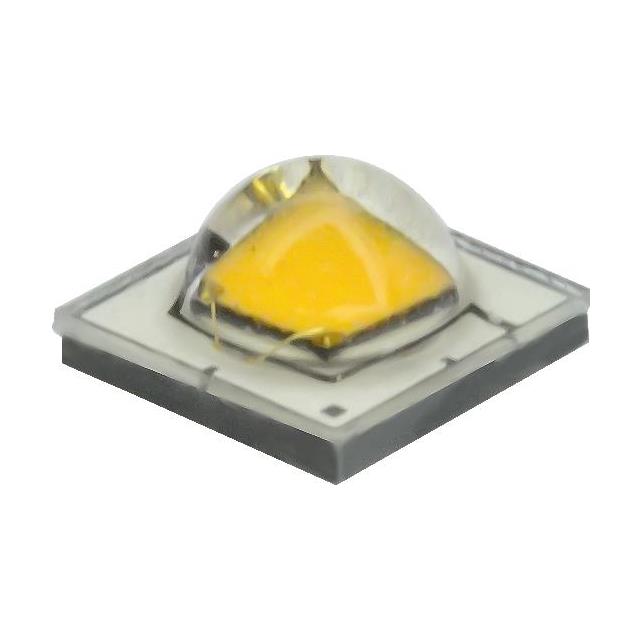

SST-20-W30H-A120-J3301
ObsoleteLuminus Devices Inc.
LED SST20 WARM WHT 3000K 1414
SST-20-W30H-A120-J3301
ObsoleteLuminus Devices Inc.
LED SST20 WARM WHT 3000K 1414
Description
General part information
SST-20-W30H-A120-J3301
LED Lighting SST-20-W Horticulture White, Warm 3000K 2.73V 350mA 120° 1414 (3535 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SST-20-W30H-A120-J3301 |
|---|---|
| CCT (K) | 3000 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 95 |
| Current - Max | 2 A |
| Current - Test | 350 mA |
| Flux (Maximum) | 107 lm |
| Flux (Minimum) | 100 lm |
| Flux (Typical) | 104 lm |
| Height - Seated (Max) | 0.083 in |
| Lumens/Watt | 109 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1414 (3535 Metric) |
| Package Name | 1414 |
| Size / Dimension Length | 0.136 in |
| Size / Dimension Width | 0.136 in |
| Thermal Resistance of Package | 1.6 ¯C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.73 V |
