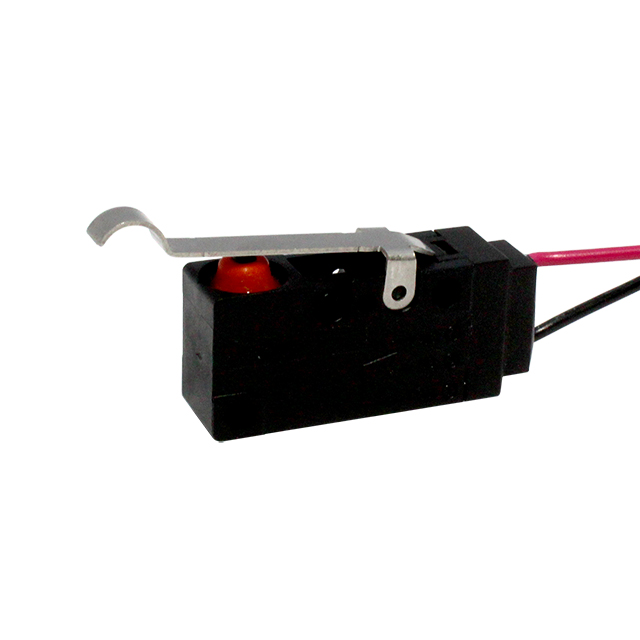

VM3SBGF1803L02
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NC 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
VM3SBGF1803L02
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NC 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VM3SBGF1803L02 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPST-NC |
| Differential Travel | 0.05 in |
| Differential Travel | 1.3 mm |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 120 gf |
| Operating Position | 0.736 in |
| Operating Position | 18.7 mm |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.039 in |
| Overtravel | 1 mm |
| Pretravel | 0.118 in |
| Pretravel | 3 mm |
| Release Force | 50 gf |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.71 | |
| 10 | $ 12.19 | |||
Description
General part information
VM3SBGF1803L02
Switch SPST-NC Chassis Mount
