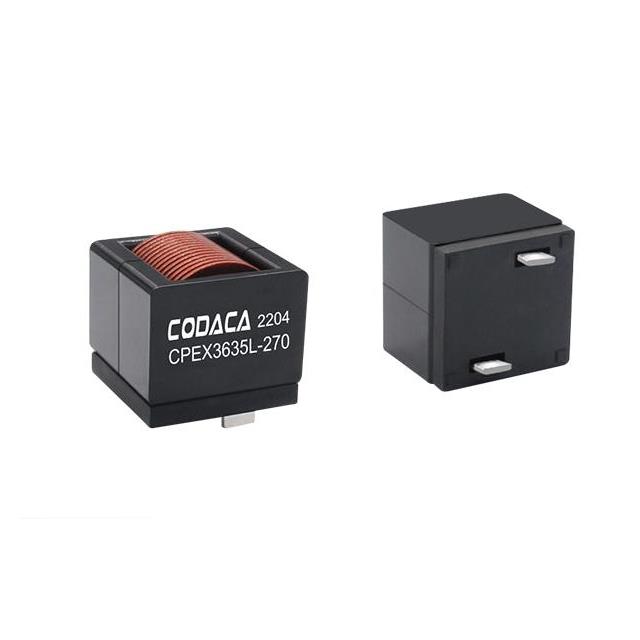

CPEX3635L-6R5MC
6.5 µH Shielded Wirewound Inductor 107 A 0.46mOhm Max Nonstandard Flat Wire, High Current, Soft Saturation
Technical Specifications
Parameters and characteristics for this part
| Specification | CPEX3635L-6R5MC |
|---|---|
| Current - Saturation (Isat) | 103 A |
| Current Rating | 107 A |
| DC Resistance (DCR) (Max) | 0.46 mOhm |
| Features | Flat Wire, Soft Saturation, High Current |
| Height - Seated (Max) | 1.346 in |
| Inductance | 6.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2 PC Pin, Vertical, Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 1.417 in |
| Size / Dimension Width | 1.406 in |
| Tolerance | 20 % |
| Type | Wirewound |
