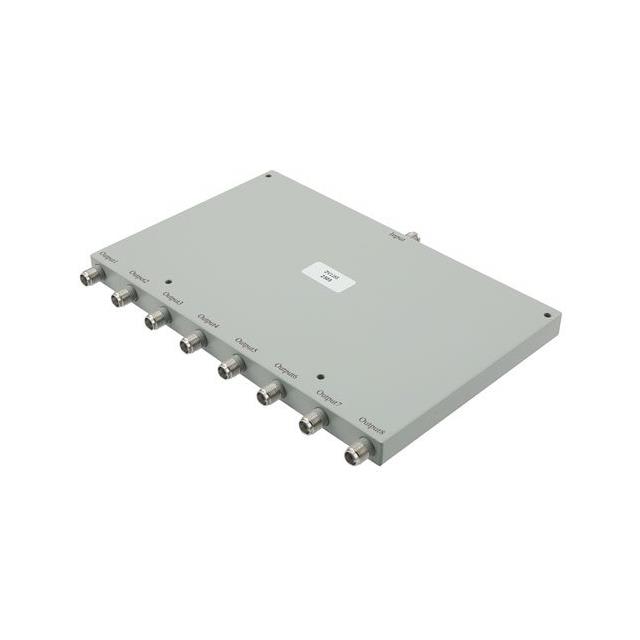

PE20DV1185
ActivePasternack
8 WAY SMA POWER DIVIDER FROM 2 G
PE20DV1185
ActivePasternack
8 WAY SMA POWER DIVIDER FROM 2 G
Description
General part information
PE20DV1185
RF Power Divider 2 GHz ~ 18 GHz Isolation (Min) 15dB, 10° Imbalance (Max), 1.8 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PE20DV1185 |
|---|---|
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 2 GHz |
| Imbalance (Max) | 10 ° |
| Insertion Loss | 2 dB |
| Isolation (Min) | 15 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.413 in |
| Size / Dimension Length | 5.846 in |
| Size / Dimension Width | 3.74 in |
| VSWR (Max) | 1.8 |
