SIHP21N80AEF-GE3
ActiveVishay Dale
E SERIES POWER MOSFET WITH FAST
SIHP21N80AEF-GE3
ActiveVishay Dale
E SERIES POWER MOSFET WITH FAST
Description
General part information
SIHP21N80AEF-GE3

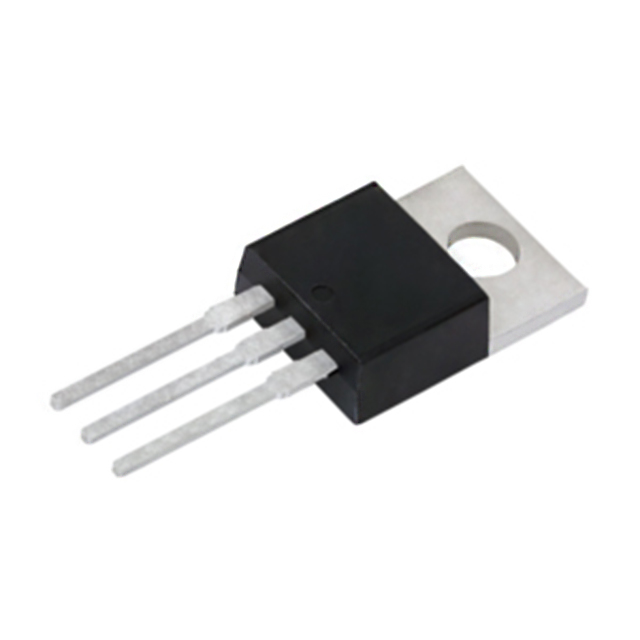

N-Channel 800 V 16.3A (Tc) 179W (Tc) Through Hole TO-220AB
Technical Specifications
Parameters and characteristics for this part
| Specification | SIHP21N80AEF-GE3 |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 16.3 A |
| Drain to Source Voltage (Vdss) | 800 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 71 nC |
| Input Capacitance (Ciss) (Max) | 1511 pF |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-3 |
| Package Name | TO-220AB |
| Power Dissipation (Max) | 179 W |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 30 V |
| Vgs(th) (Max) | 4 V |
