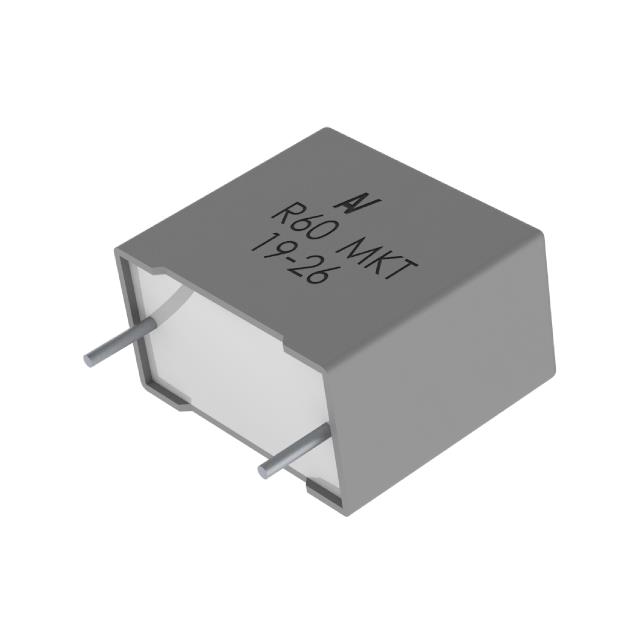

R60EI4220JH30K
2.2 µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R60EI4220JH30K |
|---|---|
| Applications | Automotive |
| Capacitance | 2.2 µF |
| Dielectric Material | Metallized - Stacked, Polyester, Polyethylene Terephthalate (PET) |
| Height - Seated (Max) | 0.575 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.335 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
