969005-2
ActiveTE Connectivity AMP Connectors

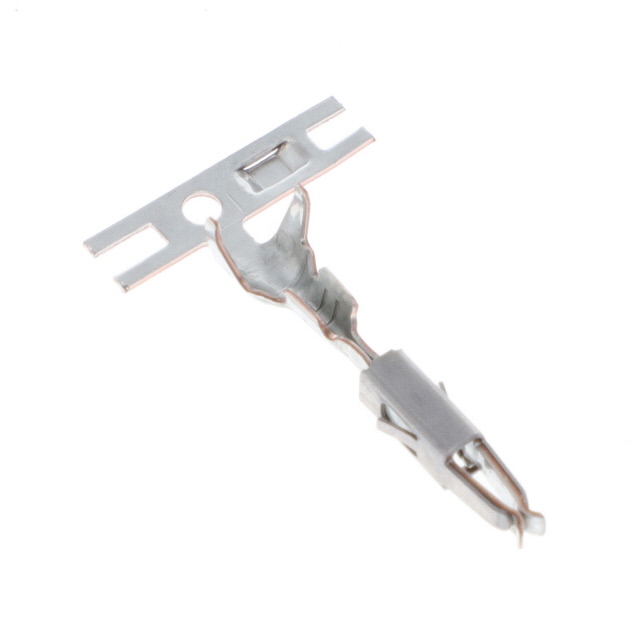

CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969005-2
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 969005-2 | 969005 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 31.5 µin |
| Contact Finish Thickness | - | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 4500 | $ 0.09 | ||
969005 Series
CONN SOCKET 20-24AWG CRIMP TIN
| Part | Contact Finish | Pin or Socket | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 969005-2 | Tin | Socket | Crimp | 20 AWG | 24 AWG | ||
TE Connectivity AMP Connectors 969005-3 | Gold | Socket | Crimp | 20 AWG | 24 AWG | 31.5 µin | 0.8 µm |
TE Connectivity AMP Connectors 4-969005-1 | Gold | Socket | Crimp | 20 AWG | 24 AWG | 31.5 µin | 0.8 µm |
Description
General part information
969005 Series
Socket Contact Tin 20-24 AWG Crimp
