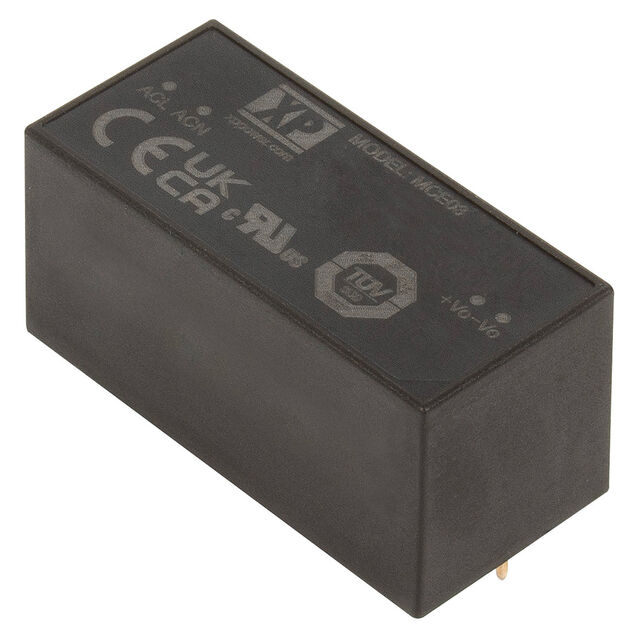

MCE03US09
ActiveXP POWER
AC/DC CONVERTER 9V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MCE03US09
ActiveXP POWER
AC/DC CONVERTER 9V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCE03US09 |
|---|---|
| Applications | Medical |
| Approval Agency | CB, UL, CE, UKCA, TUV |
| Current - Output (Max) [Max] | 333 mA |
| Efficiency | 79 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation | 4 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 2.997 W |
| Size / Dimension [x] | 40.6 mm |
| Size / Dimension [x] | 1.6 " |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [y] | 19.1 mm |
| Size / Dimension [z] | 0.75 in |
| Size / Dimension [z] | 19.1 mm |
| Standard Number | 60601-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output 1 | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.50 | |
| 5 | $ 11.16 | |||
| 10 | $ 10.81 | |||
| 25 | $ 10.35 | |||
| 100 | $ 9.66 | |||
Description
General part information
MCE03US09
Enclosed AC DC Converters 1 Output 9V 333mA 80 ~ 264 VAC Input
