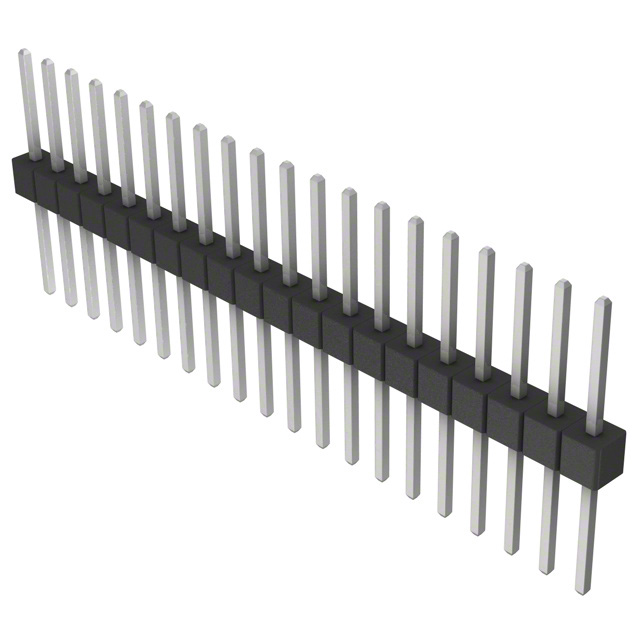

PEC20SFCN

Active

Sullins Connector Solutions

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC20SFCN

Active

Sullins Connector Solutions

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC20SFCN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.738 "
Overall Contact Length	18.75 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC20 Series

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Fastening Type	Number of Positions Loaded	Insulation Color	Shrouding	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Material Flammability Rating	Contact Shape	Contact Finish - Post	Insulation Material	Number of Rows	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]
Sullins Connector Solutions PEC20SBAN	3.56 mm	0.14 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole Right Angle	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	1	3 A	20	2.54 mm	0.1 in	0.23 in	5.84 mm	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin
Sullins Connector Solutions PEC20DADN	2.54 mm	0.1 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	2	3 A	40			0.23 in	5.84 mm	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin	0.75 in	19.05 mm	10.67 mm	0.42 in	2.54 mm	0.1 in
Sullins Connector Solutions PEC20DBCN	6.1 mm	0.24 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole Right Angle	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	2	3 A	40			0.23 in	5.84 mm	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin			7.62 mm	0.3 "	2.54 mm	0.1 in
Sullins Connector Solutions PEC20DAFN	2.54 mm	0.1 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	2	3 A	40	15.75 mm	0.62 in	0.23 in	5.84 mm	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin	0.95 in	24.13 mm			2.54 mm	0.1 in
Sullins Connector Solutions PEC20SBCN	3.56 mm	0.14 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole Right Angle	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	1	3 A	20			0.23 in	5.84 mm	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin			7.62 mm	0.3 "
Sullins Connector Solutions PEC20DBBN	6.1 mm	0.24 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole Right Angle	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	2	3 A	40			0.23 in	5.84 mm	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin			5.08 mm	0.2 in	2.54 mm	0.1 in
Sullins Connector Solutions PEC20DFBN	2.54 mm	0.1 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	2	3 A	40	5.58 mm	0.22 in	0.318 "		125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin	0.638 in	16.21 mm			2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PEC20SFCN	2.54 mm	0.1 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	1	3 A	20			0.318 "		125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin	0.738 "	18.75 mm	8.13 mm	0.32 in			8.08 mm
Sullins Connector Solutions PEC20SGBN	3.56 mm	0.14 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole Right Angle	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	1	3 A	20			0.318 "		125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin			5.08 mm	0.2 in			8.08 mm
Sullins Connector Solutions PEC20DAGN	2.54 mm	0.1 in	2.54 µm	100 µin	Male Pin	Push-Pull	All	Black	Unshrouded	Through Hole	Solder	0.1 in	2.54 mm	Breakaway Header	UL94 V-0	Square	Tin	Polybutylene Terephthalate (PBT)	2	3 A	40			0.23 in	5.84 mm	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	2.54 çm	100 çin	1.05 in	26.67 mm	18.29 mm	0.72 "	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.35
		10	$ 1.80
		100	$ 1.39
		500	$ 1.17
		1000	$ 1.09
		5000	$ 1.04

Description

General part information

PEC20 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)
