7900A T5U500
ActiveBelden Inc.

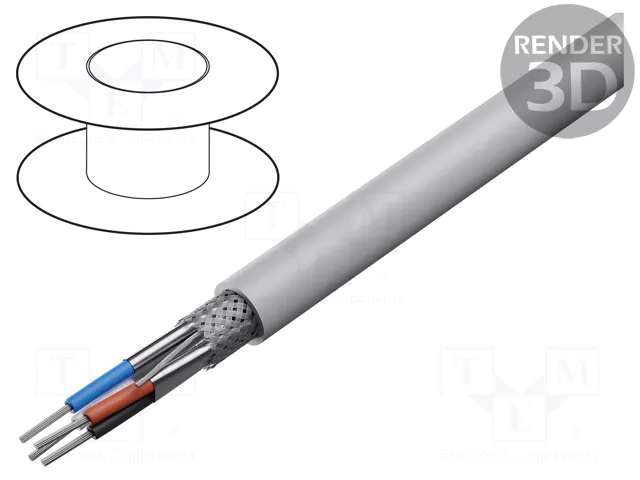

WIRE; 1X2X16AWG,1X2X18AWG; DEVICEBUS,DEVICENET; STRANDED; CU
7900A T5U500
ActiveBelden Inc.
WIRE; 1X2X16AWG,1X2X18AWG; DEVICEBUS,DEVICENET; STRANDED; CU
Description
General part information
7900A T5U500
WIRE; 1X2X16AWG,1X2X18AWG; DEVICEBUS,DEVICENET; STRANDED; CU
Technical Specifications
Parameters and characteristics for this part
| Specification | 7900A T5U500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polyamide (PA), Polypropylene (PP), Poly-Vinyl Chloride (PVC), Nylon |
| Conductor Material | Tinned, Copper |
| Conductor Strand | 19/29, 19/30 |
| Features | Oil Resistant, UV Resistant, Flame Retardant |
| Jacket (Insulation) Diameter | 0.43 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.075 in |
| Jacket Color | Gray |
| Length | 500 ft |
| Number of Conductors | 4 |
| Number of Conductors - Pair | 2 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | UL, TC-ER, Style |
| Voltage | 600 V |
| Wire Gauge | 18 AWG, 16 AWG |
