Description
General part information

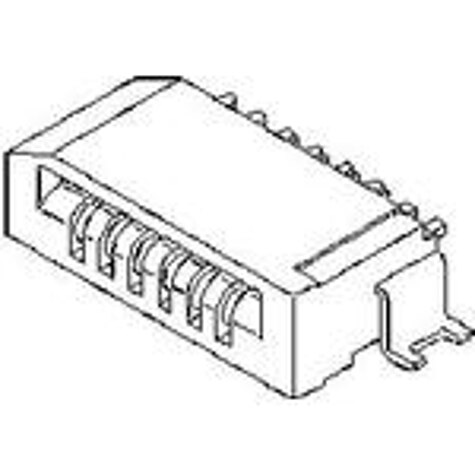

0528522470
FFC & FPC CONNECTORS 1.00MM REC 24P RA SMT BOT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0528522470 |
|---|---|
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin Bismuth |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.122 in |
| Housing Material | PPS, Polyphenylene Sulfide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.039 in |
| Termination | Solder |
| Voltage Rating | 50 V |
