CM150RX-24S1
UnknownPowerex Inc.
IGBT MOD 1200V 150A 935W
CM150RX-24S1
UnknownPowerex Inc.
IGBT MOD 1200V 150A 935W
Description
General part information
CM150RX-24S1

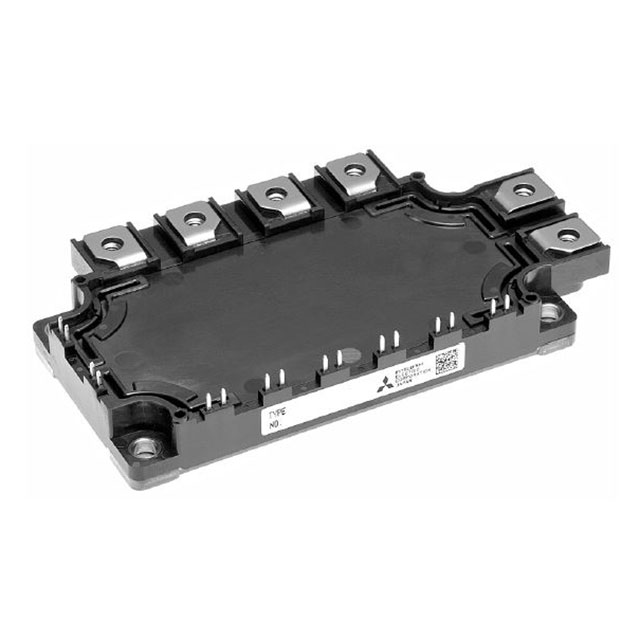

IGBT Module Three Phase Inverter with Brake 1200 V 150 A 935 W Chassis Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CM150RX-24S1 |
|---|---|
| Configuration | Three Phase Inverter with Brake |
| Current - Collector (Ic) (Max) | 150 A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 15 nF, 15 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 935 W |
| Vce(on) (Max) | 2.25 V |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
