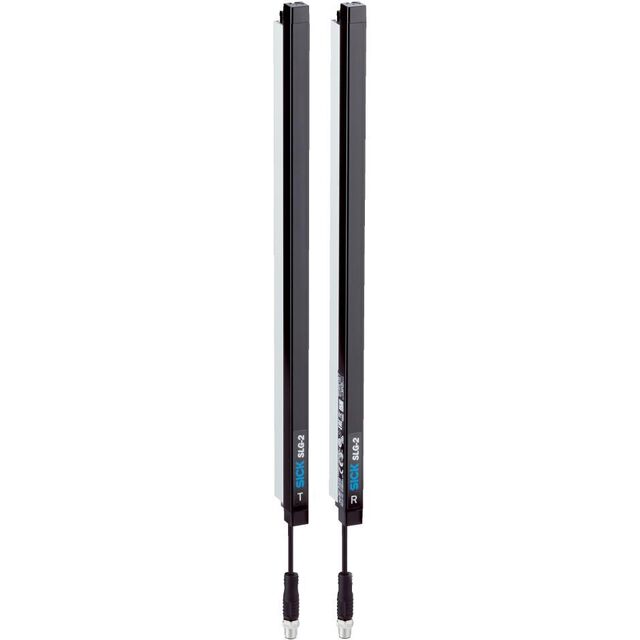

Specification	1121760

Adjustment Type	Adjustable
Cable Length	5.906 in
Connection Method	Cable with Connector
Ingress Protection	IP65, IP67
Light Source	Infrared
Light Source Wavelength (Infrared)	850 nm
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Output Configuration	NPN, Push-Pull, PNP - Light-ON
Response Time	11.9 ms
Sensing Distance Maximum	137.795 "
Sensing Distance Minimum	17.323 "
Sensing Method	Through-Beam
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	18 VAC
