828214-3

Active

TE Connectivity AMP Connectors

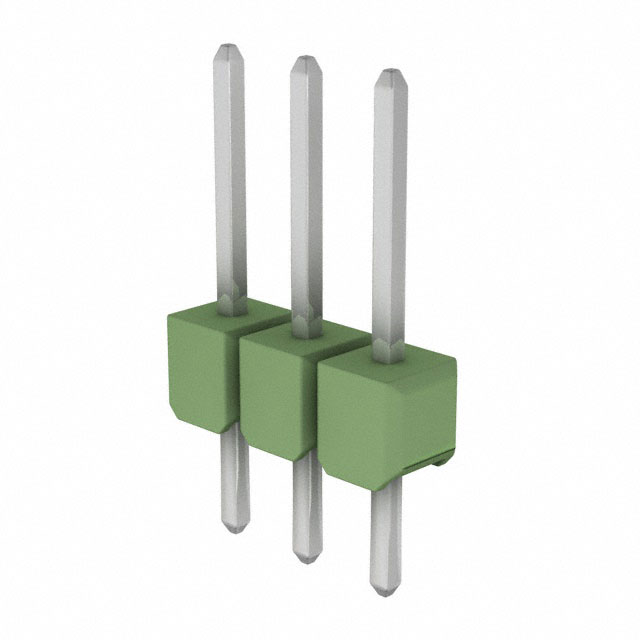

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

828214-3

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6000	$ 1.01

Description

General part information

828214 Series

Connector Header Through Hole 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	828214-3	828214 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	78.7 µin	78.7 µin
Contact Finish Thickness - Mating	2 µm	2 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	2 - 50
Number of Positions Loaded	All	All
Number of Rows	1	1
Overall Contact Length	12.7 mm	12.7 mm
Overall Contact Length	0.5 "	0.5 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

828214 Series

CONN HEADER VERT 6POS 2.54MM

Part	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Overall Contact Length	Overall Contact Length	Contact Shape	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Positions	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Type	Insulation Material	Number of Rows	Fastening Type	Contact Material	Contact Length - Post	Contact Length - Post [x]	Number of Positions Loaded	Material Flammability Rating
TE Connectivity AMP Connectors 828214-6	Board to Board, Cable	78.7 µin	2 µm	Green	Breakaway, Header	12.7 mm	0.5 "	Square	Solder	0.1 in	2.54 mm	Tin	2 çm	78.7 çin	Unshrouded	6	6.7 mm	0.264 in	Through Hole	Male Pin	Polybutylene Terephthalate (PBT)	1	Push-Pull	Copper Alloy	3.2 mm	0.126 in	All	UL94 V-0
TE Connectivity AMP Connectors 5-828214-0	Board to Board, Cable	78.7 µin	2 µm	Green	Breakaway, Header	12.7 mm	0.5 "	Square	Solder	0.1 in	2.54 mm	Tin	2 çm	78.7 çin	Unshrouded	50	6.7 mm	0.264 in	Through Hole	Male Pin	Polybutylene Terephthalate (PBT)	1	Push-Pull	Copper Alloy	3.2 mm	0.126 in	All	UL94 V-0
TE Connectivity AMP Connectors 828214-8	Board to Board, Cable	78.7 µin	2 µm	Green	Breakaway, Header	12.7 mm	0.5 "	Square	Solder	0.1 in	2.54 mm	Tin	2 çm	78.7 çin	Unshrouded	8	6.7 mm	0.264 in	Through Hole	Male Pin	Polybutylene Terephthalate (PBT)	1	Push-Pull	Copper Alloy	3.2 mm	0.126 in	All	UL94 V-0
TE Connectivity AMP Connectors 828214-2	Board to Board, Cable	78.7 µin	2 µm	Green	Breakaway, Header	12.7 mm	0.5 "	Square	Solder	0.1 in	2.54 mm	Tin	2 çm	78.7 çin	Unshrouded	2	6.7 mm	0.264 in	Through Hole	Male Pin	Polybutylene Terephthalate (PBT)	1	Push-Pull	Copper Alloy	3.2 mm	0.126 in	All	UL94 V-0
TE Connectivity AMP Connectors 828214-3	Board to Board, Cable	78.7 µin	2 µm	Green	Breakaway, Header	12.7 mm	0.5 "	Square	Solder	0.1 in	2.54 mm	Tin	2 çm	78.7 çin	Unshrouded		6.7 mm	0.264 in	Through Hole	Male Pin	Polybutylene Terephthalate (PBT)	1	Push-Pull	Copper Alloy	3.2 mm	0.126 in	All	UL94 V-0
TE Connectivity AMP Connectors 828214-4	Board to Board, Cable	78.7 µin	2 µm	Green	Breakaway, Header	12.7 mm	0.5 "	Square	Solder	0.1 in	2.54 mm	Tin	2 çm	78.7 çin	Unshrouded	4	6.7 mm	0.264 in	Through Hole	Male Pin	Polybutylene Terephthalate (PBT)	1	Push-Pull	Copper Alloy	3.2 mm	0.126 in	All	UL94 V-0
TE Connectivity AMP Connectors 828214-7	Board to Board, Cable	78.7 µin	2 µm	Green	Breakaway, Header	12.7 mm	0.5 "	Square	Solder	0.1 in	2.54 mm	Tin	2 çm	78.7 çin	Unshrouded	7	6.7 mm	0.264 in	Through Hole	Male Pin	Polybutylene Terephthalate (PBT)	1	Push-Pull	Copper Alloy	3.2 mm	0.126 in	All	UL94 V-0
