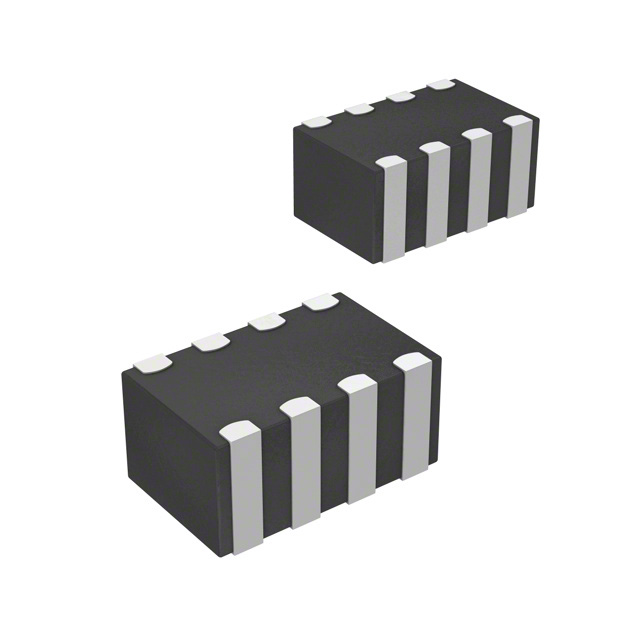

CLLE1AX7R0G473M050AC
ObsoleteTDK Corporation
CAP CER 0.047UF 4V X7R 0805
CLLE1AX7R0G473M050AC
ObsoleteTDK Corporation
CAP CER 0.047UF 4V X7R 0805
Description
General part information
CLLE1AX7R0G473M050AC
0.047 µF ±20% 4V Ceramic Capacitor X7R 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CLLE1AX7R0G473M050AC |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 47 nF |
| Features | Low ESL (Multi-Terminal) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.022 in |
| Tolerance | 20 % |
| Voltage - Rated | 4 V |
