USBAW3M0USBC1SRWH
ActiveGlobTek, Inc.
CABLE A PLUG TO C PLUG 9.84'
USBAW3M0USBC1SRWH
ActiveGlobTek, Inc.
CABLE A PLUG TO C PLUG 9.84'
Description
General part information
USBAW3M0USBC1SRWH

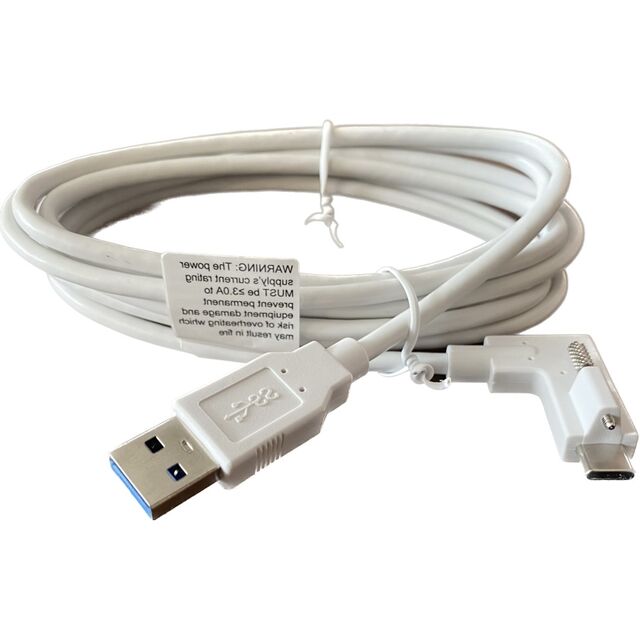

USB 5Gbps (USB 3.0, USB 3.x Gen 1, Superspeed) Cable A Male to C Male, Right Angle 9.84' (3.00m) Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | USBAW3M0USBC1SRWH |
|---|---|
| Color | White |
| Configuration | A Male to C Male, Right Angle |
| Features | 10K Resistor, 1 Screw Lock, Panel Mount, Reversible, Data Transfer and Charge |
| Interface | USB 3.0, USB 3.x Gen 1, USB 5Gbps, Superspeed |
| Length | 9.84 ft |
| Shielding | Shielded |
| Specifications | USB 5Gbps (USB 3.0, USB 3.x Gen 1, Superspeed) |
| Transfer Rate | 5 Gbps |
| Wire Gauge | 24 AWG, 32 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
