Description
General part information

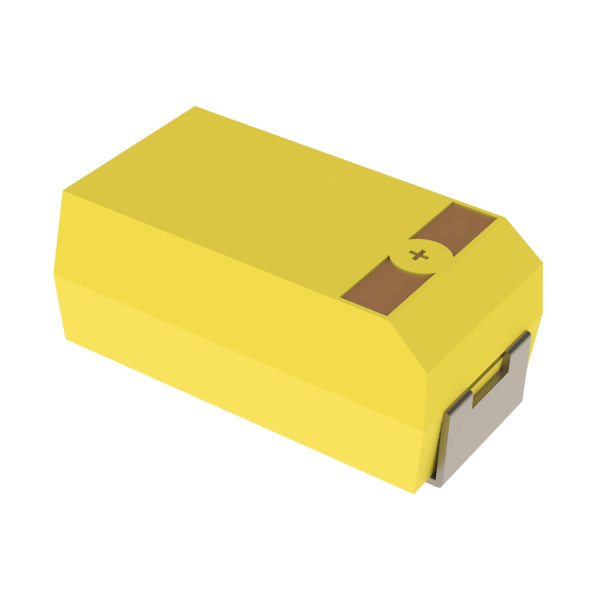

T493C686K010CH642C
68 µF Molded Tantalum Capacitors 10 V 2312 (6032 Metric) 300mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T493C686K010CH642C |
|---|---|
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 300 mOhm |
| Failure Rate (Percent) | 0.01 % |
| Failure Rate Rating | C |
| Features | High Reliability |
| Height - Seated (Max) | 0.11 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | C |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2312 (6032 Metric) |
| Ratings | COTS |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 10 V |
