CT001147

Active

TPI (Test Products Int)

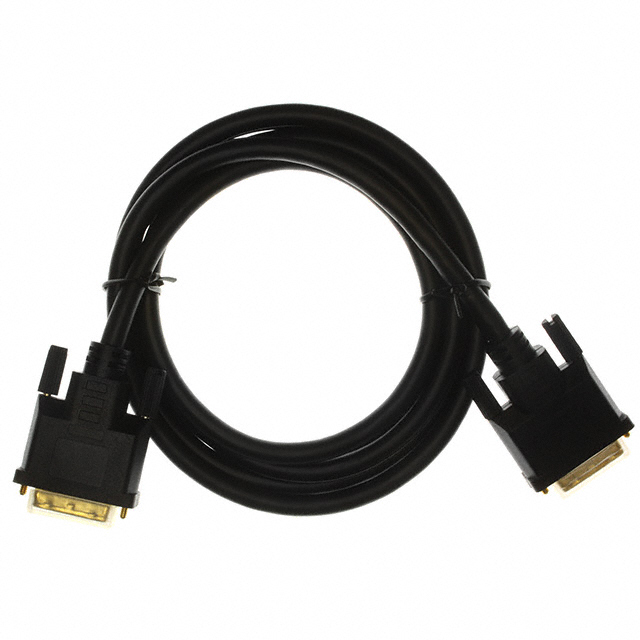

CBL M-M DVI-D SNGL LINK 2M SHLD

Search across all available documentation for this part.

Active

TPI (Test Products Int)

CBL M-M DVI-D SNGL LINK 2M SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT001147	CT011 Series

1st Connector Mounting Type	Free Hanging (In-Line), Mating Hardware	Free Hanging (In-Line), Mating Hardware, Free Hanging (In-Line)
1st Connector Type	DVI-D Single Link, Male	DVI-D Single Link, Male, HDMI-A Male
2nd Connector Mounting Type	Free Hanging (In-Line), Mating Hardware	Free Hanging (In-Line), Mating Hardware
2nd Connector Type	DVI-D Single Link, Male	DVI-D Single Link, Male
Cable Type	Round	Round
Color	Black	Black
Length [x]	6.6 ft	6.6 ft
Length [x]	2 m	2 m
Shielding	Shielded	Shielded
Usage	Digital Visual Interface	Digital Visual Interface, Multi Media, High Definition Multimedia Interface

CBL M-M DVI-D SNGL LINK 2M SHLD

Part	1st Connector Type	Usage	Cable Type	Color	1st Connector Mounting Type	Length [x]	Length [x]	2nd Connector Type	Shielding	2nd Connector Mounting Type
TPI (Test Products Int) CT001147	DVI-D Single Link, Male	Digital Visual Interface	Round	Black	Free Hanging (In-Line), Mating Hardware	6.6 ft	2 m	DVI-D Single Link, Male	Shielded	Free Hanging (In-Line), Mating Hardware
TPI (Test Products Int) CT001149	DVI-D Single Link, Male	Multi Media	Round	Black	Free Hanging (In-Line), Mating Hardware	6.6 ft	2 m		Shielded	Free Hanging (In-Line)
TPI (Test Products Int) CT001148	HDMI-A Male	High Definition Multimedia Interface	Round	Black	Free Hanging (In-Line)	6.6 ft	2 m		Shielded	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 19.14

General part information

Cable Assembly 6.6' (2.00m)
