Description
General part information

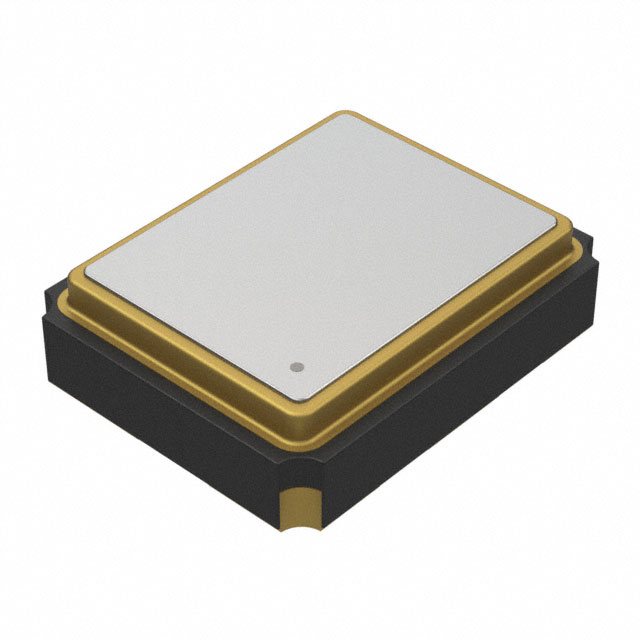

TZJTADSANF-19.200000
19.2 MHz TCXO Clipped Sine Wave Oscillator 2.5V 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TZJTADSANF-19.200000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.5 mA |
| Frequency | 19.2 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | No Lead, 6-SMD, 4-SMD |
| Package Length | 2.05 mm |
| Package Name | 4-SMD |
| Package Width | 1.65 mm |
| Size / Dimension Length | 0.081 in |
| Size / Dimension Width | 0.065 in |
| Type | TCXO |
| Voltage - Supply | 2.5 V |
