Description
General part information

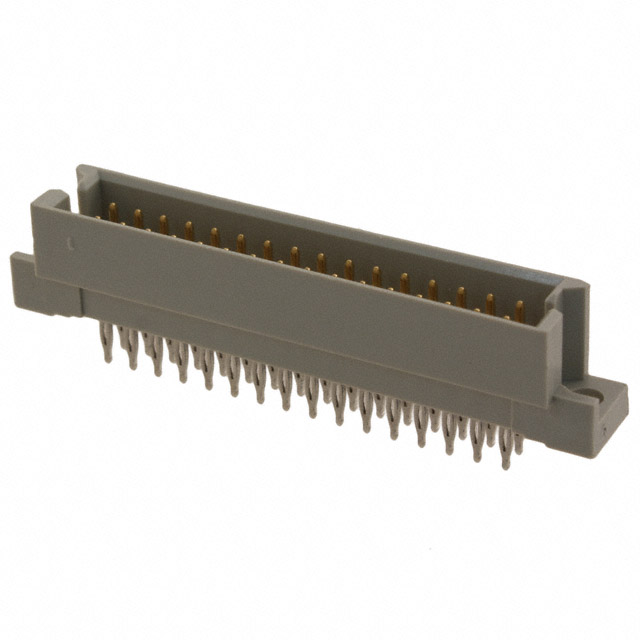

09271326904
32 Position Din Connector Header, Male Pins Gold Panel Mount, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 09271326904 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Style | 2Q |
| Termination | Press-Fit |
