130149 Series

AC Power Plugs & Receptacles FLANGED INLET NEMA L7-15

Part	Termination	Approval Agency	Mounting Type	Voltage Rating (Minimum)	Voltage Rating (Phase)	Voltage Rating	Voltage Rating (Maximum)	Panel Cutout Diameter	Panel Cutout Shape	Number of Positions	Connector Type	Features	Current Rating	Connector Style	Voltage Rating (Option 1)	Voltage Rating (Option 2)
Molex 1301490052	Screw	CSA UL	Flange Panel Mount	250 VAC	3 Phase	250 V	250 V	50 mm	Circular	4	Male Blades Receptacle	Cord-Clamp Strain Relief Locking Blade	30 A	NEMA L15-30P
Molex 1301490024	Screw	CSA UL	Free Hanging (In-Line)							3	Male Blades Receptacle	Locking Blade	20 A	NON-NEMA (3P3W)	125 VAC	250 VAC

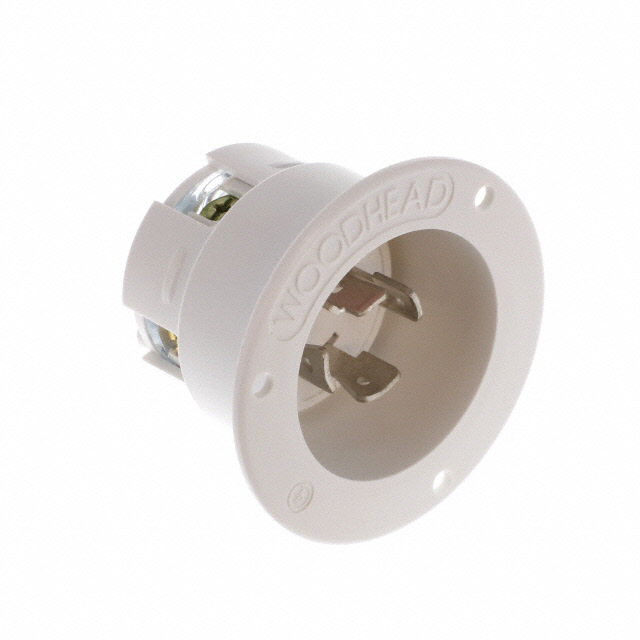

Molex 1301490031	Screw	CSA UL	Free Hanging (In-Line)		3 Phase	480 VAC 480 VAC				4	Male Blades Receptacle	Locking Blade	20 A	NEMA L16-20R
Molex 1301490051	Screw	CSA UL	Flange Panel Mount					50 mm	Circular	4	Male Blades Receptacle	Cord-Clamp Strain Relief Locking Blade	30 A	NEMA L14-30P	125 VAC	250 VAC

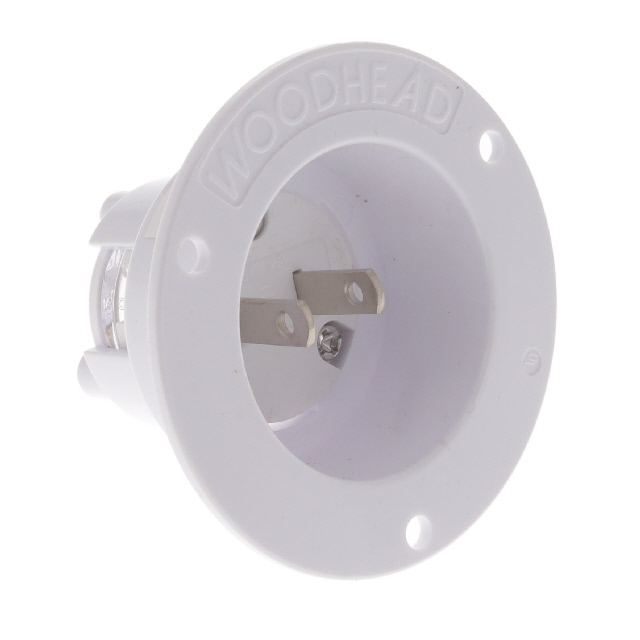

Molex 1301490005	Screw	CSA UL	Flange Panel Mount			125 V		50 mm	Circular	2	Male Blades Receptacle		15 A	NEMA 1-15P
Molex 1301490038	Screw	CSA UL	Free Hanging (In-Line)			250 V				5	Female Sockets Receptacle	Locking Blade	20 A	NON-NEMA (4P5W)
Molex 1301490087	Screw	CSA UL	Outlet Box			125 V				3	Female Sockets Receptacle		15 A	NEMA 5-15R
Molex 1301490028	Screw	CSA UL	Free Hanging (In-Line)			250 V				3	Male Blades Receptacle	Locking Blade	20 A	NEMA L6-20R
Molex 1301490096
Molex 1301490012	Screw	CSA UL	Flange Panel Mount			125 V		50 mm	Circular	3	Female Sockets Receptacle		15 A	NEMA 5-15R
