CA25C2602NMR
ActiveCTS-Frequency Controls
XTAL OSC XO 26.0000MHZ HCMOS TTL
CA25C2602NMR
ActiveCTS-Frequency Controls
XTAL OSC XO 26.0000MHZ HCMOS TTL
Description
General part information
CA25C2602NMR

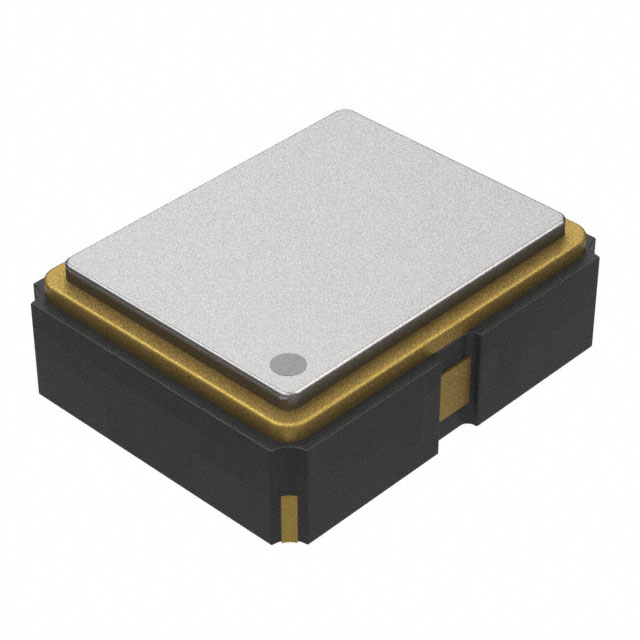

26 MHz XO (Standard) HCMOS, TTL Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CA25C2602NMR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 15 mA |
| Frequency | 26 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Output | TTL, HCMOS |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
