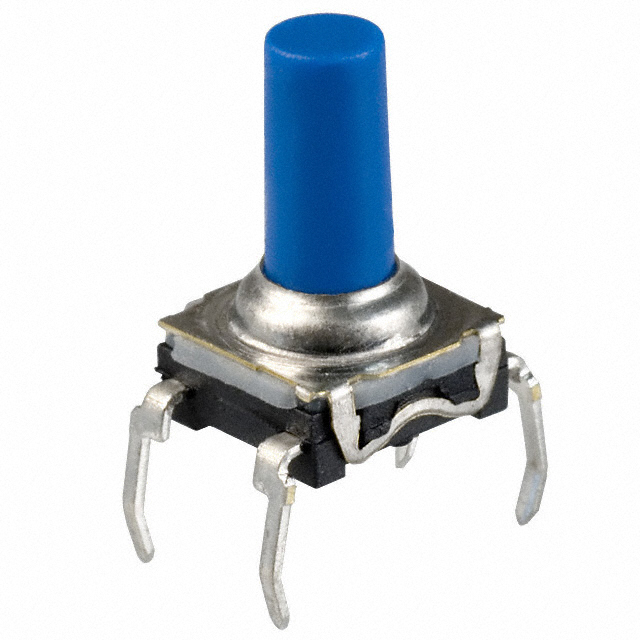

KSL0M412LFT

Active

LITTELFUSE

SWITCH TACTILE SPST-NO 0.05A 32V

Find alt

Alpha

KSL0M412LFT

Active

LITTELFUSE

SWITCH TACTILE SPST-NO 0.05A 32V

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Ksa0Mkii0 Series Series

C&K’s KSA MKII series switch has the highest sealing performance, making it ideal for consumer, automotive and industrial applications that must withstand erosion and harsh environments, such as regular exposure to water. The KSA MKII is also highly responsive due to its excellent tactile feel.

Technical Specifications

Parameters and characteristics for this part

Specification	KSL0M412LFT

Actuator Height off PCB (Vertical)	9.9 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Outline Length	7.4 mm
Outline Width	7.4 mm
Switch Function	Off-Mom
Switch Travel	0.6 mm
Termination Style	PC Pin

Ksa0Mkii0 Series Series

Part	Actuator Type	Mounting Type	Switch Function	Outline Width	Outline Length	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Circuit	Operating Force	Contact Rating (Current)	Termination Style	Actuator Height off PCB (Vertical)	Actuator Orientation	Illumination	Mechanical Life (Cycles)	Switch Travel
LITTELFUSE KSL0M511 LFTR	Standard	Through Hole	Off-Mom	7.4 mm	7.4 mm	IP60	Dust Tight	90 °C	-40 °C	SPST-NO	0.5 kgf	0.05 A	PC Pin	9.9 mm	Top Actuated	Non-Illuminated	100000 Cycles	0.7 mm
LITTELFUSE KSL0M531LFT	Standard	Through Hole	Off-Mom	7.4 mm	7.4 mm	IP60	Dust Tight	125 °C	-40 °C	SPST-NO	0.5 kgf	0.01 A	PC Pin	9.9 mm	Top Actuated	Non-Illuminated	100000 Cycles	0.7 mm
LITTELFUSE KSL0M531 LFTR	Standard	Through Hole	Off-Mom	7.4 mm	7.4 mm	IP60	Dust Tight	125 °C	-40 °C	SPST-NO	0.5 kgf	0.01 A	PC Pin	4.7 mm	Top Actuated	Non-Illuminated	100000 Cycles	0.7 mm
LITTELFUSE KSL0M511LFT	Standard	Through Hole	Off-Mom	7.4 mm	7.4 mm	IP60	Dust Tight	90 °C	-40 °C	SPST-NO	0.5 kgf	0.05 A	PC Pin	9.9 mm	Top Actuated	Non-Illuminated	100000 Cycles	0.7 mm

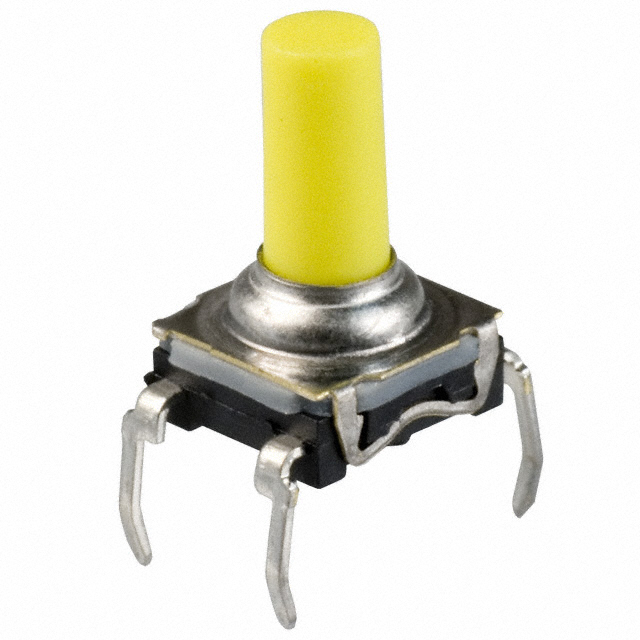

LITTELFUSE KSL0M512	Standard	Through Hole	Off-Mom	7.4 mm	7.4 mm	IP65	Dust Tight Water Resistant	90 °C	-40 °C	SPST-NO	0.5 kgf	0.05 A	PC Pin	9.9 mm	Top Actuated	Non-Illuminated	100000 Cycles	0.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

tactile
