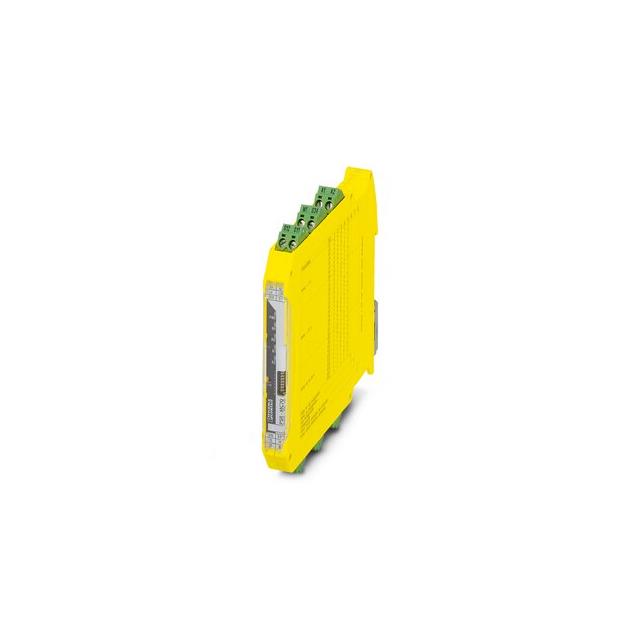

2702094
ObsoletePhoenix Contact
PSR-MC70-2NO-1DO-24DC-SC
2702094
ObsoletePhoenix Contact
PSR-MC70-2NO-1DO-24DC-SC
Description
General part information
2702094
PSR-MC70-2NO-1DO-24DC-SC
Technical Specifications
Parameters and characteristics for this part
| Specification | 2702094 |
|---|---|
| Coil Current | 50 mA |
| Coil Power | 1.2 W |
| Coil Resistance | 480 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator, Diode |
| Form A Count | 2 |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 19.2 V |
| Operate Time | 35 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -35 °C |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Screw Terminal |
