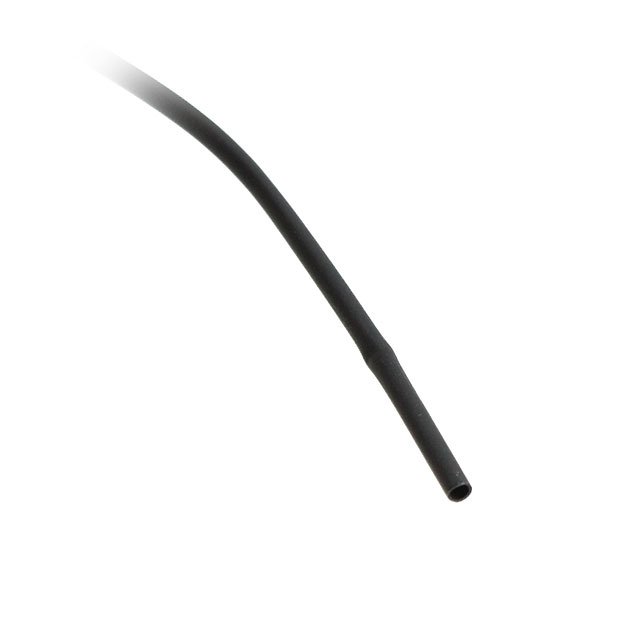

X4-0.8-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK 1.2MM DIA 1=200M BK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X4-0.8-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK 1.2MM DIA 1=200M BK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

X4 Series

Heat Shrink Tubing, Flexible 0.046" (1.17mm) 2 to 1 Black 656.2' (200.0m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X4-0.8-0-SP	X4 Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	0.41 mm	0.41 - 5.99 mm
Inner Diameter - Recovered	-	0.3 - 12.5 mm
Inner Diameter - Recovered	-	0.079 - 0.236 in
Inner Diameter - Recovered [diameter]	0.016 in	0.012 - 0.492 in
Inner Diameter - Supplied	-	6.48 mm
Inner Diameter - Supplied [diameter]	1.17 mm	0.255 - 26.39 mm
Inner Diameter - Supplied [diameter]	0.046 in	0.037 - 1.039 in
Length	656.2 ft	32.8 - 656.2 ft
Length	200 m	10 - 200 m
Length	-	Enter Number of Meters in Order Quantity
Length [x]	1 m, 5 m	1 - 5 m
Length [x]	3.28 ft, 16.4 ft	3.28 - 16.4 ft
Material	Polyolefin (PO), Irradiated, Halogen Free	Polyolefin (PO), Irradiated, Halogen Free, Polyolefin (PO), Irradiated
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Recovered Wall Thickness	0.01 in	0.01 - 0.018 "
Recovered Wall Thickness	0.25 mm	0.25 - 0.46 mm
Shelf Life	144 Months	144 Months
Shrink Temperature	70 °C	70 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	-	656.2 '
Spool Size	-	200 m
Storage/Refrigeration Temperature [Max]	35 °C	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C	18 - 65 °F
Type	Tubing, Flexible	Tubing, Flexible

X4 Series

HEATSHRNK TUBING 2.5 BLACK 1=50M

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length [x]	Length [x]	Length	Length	Color	Shrink Temperature	Type	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Spool Size	Spool Size	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]
TE Connectivity Raychem Cable Protection X4-2.5-0-SP-SM	18 °C, 65 °F	35 °C	1 m, 5 m	3.28 ft, 16.4 ft	164 ft, 656.2 ft	50 m, 200 m	Black	70 °C	Tubing, Flexible	2 to 1	0.011 "	0.28 mm	656.2 '	200 m	0.049 in	1.24 mm	144 Months	Enter Number of Meters in Order Quantity	0.11 in	2.79 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection X4-3.5-0-SP	18 °C, 65 °F	35 °C	1 m	3.28 ft	656.2 ft	200 m	Black	70 °C	Tubing, Flexible	2 to 1	0.011 "	0.28 mm			0.069 in	1.75 mm	144 Months		0.15 in	3.81 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection X4-18.0-0-FSP-SM	18 °C, 65 °F	35 °C	1 m, 5 m	3.28 ft, 16.4 ft	164 ft	50 m	Black	70 °C	Tubing, Flexible	2 to 1	0.018 in	0.46 mm			0.354 in	8.99 mm	144 Months	Enter Number of Meters in Order Quantity	0.756 in	19.2 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection X4-4.0-0-SP-SM	18 °C, 65 °F	35 °C	1 m, 5 m	3.28 ft, 16.4 ft	164 ft, 656.2 ft	50 m, 200 m	Black	70 °C	Tubing, Flexible	2 to 1	0.011 "	0.28 mm	656.2 '	200 m			144 Months	Enter Number of Meters in Order Quantity	0.175 in	4.45 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C	0.079 in	2.01 mm
TE Connectivity Raychem Cable Protection X4-25.0-0-FSP-SM	18 °C, 65 °F	35 °C	1 m, 5 m	3.28 ft, 16.4 ft	164 ft	50 m	Black	70 °C	Tubing, Flexible	2 to 1	0.018 in	0.46 mm			0.492 "	12.5 mm	144 Months	Enter Number of Meters in Order Quantity	1.039 in	26.39 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection X4-6.0-0-SP-SM	18 °C, 65 °F	35 °C	1 m, 5 m	3.28 ft, 16.4 ft	82 ft, 164 ft, 328.1 ft	25 m, 50 m, 100 m	Black	70 °C	Tubing, Flexible	2 to 1	0.013 in	0.33 mm			0.118 in	2.99 mm	144 Months		0.256 in	0.255 in, 6.5 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C	0.118 in	3 mm	6.48 mm
TE Connectivity Raychem Cable Protection X4-18.0-0-FSP	18 °C, 65 °F	35 °C	1 m	3.28 ft			Black	70 °C	Tubing, Flexible	2 to 1	0.018 in	0.46 mm			0.354 in	8.99 mm	144 Months		0.756 in	19.2 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection X4-4.0-0-SP	18 °C, 65 °F	35 °C	1 m	3.28 ft	164 ft, 656.2 ft	50 m, 200 m	Black	70 °C	Tubing, Flexible	2 to 1	0.011 "	0.28 mm					144 Months		0.175 in	4.45 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C	0.079 in	2.01 mm
TE Connectivity Raychem Cable Protection X4-3.0-0-SP-SM	18 °C, 65 °F	35 °C	1 m, 5 m	3.28 ft, 16.4 ft	164 ft, 656.2 ft	50 m, 200 m	Black	70 °C	Tubing, Flexible	2 to 1	0.011 "	0.28 mm	656.2 '	200 m	0.06 in	1.52 mm	144 Months	Enter Number of Meters in Order Quantity	0.13 in	3.3 mm	Polyolefin (PO), Irradiated, Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C
TE Connectivity Raychem Cable Protection X4-2.0-0-SP-SM	18 °C, 65 °F	35 °C	1 m, 5 m	3.28 ft, 16.4 ft	164 ft, 656.2 ft	50 m, 200 m	Black	70 °C	Tubing, Flexible	2 to 1	0.01 in	0.25 mm	656.2 '	200 m	0.039 in	0.99 mm	144 Months	Enter Number of Meters in Order Quantity	0.091 in, 0.092 in	2.3 mm, 2.34 mm	Polyolefin (PO), Irradiated, Halogen Free	Flame Retardant	125 °C	-30 ░C
