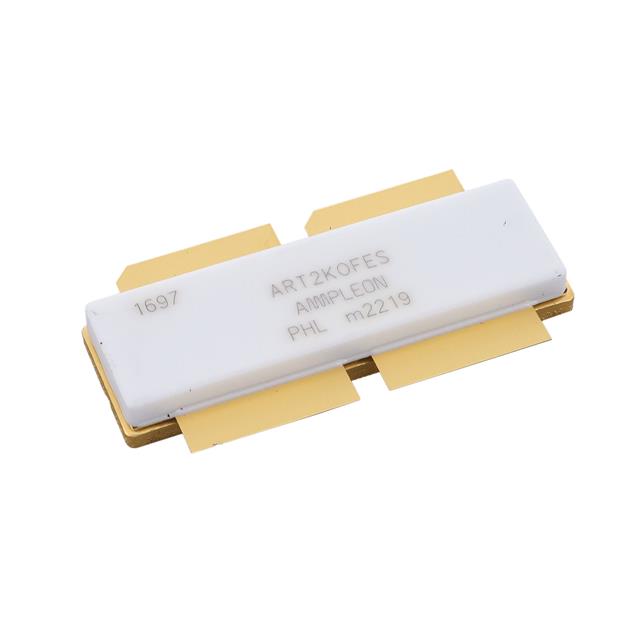

ART2K0FESU

Active

Ampleon USA Inc.

RF MOSFET LDMOS 65V SOT539AN

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 65V SOT539AN

Technical Specifications

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 65V SOT539AN

Part	Voltage - Test	Power - Output	Frequency [Min]	Frequency [Max]	Supplier Device Package	Package / Case	Mounting Type	Voltage - Rated	Gain	Configuration	Current Rating (Amps)	Current - Test	Frequency
Ampleon USA Inc. ART2K0FEGJ	65 V	2 kW	1 MHz	400 MHz	SOT539AN	SOT-539AN	Chassis Mount	200 V	28.9 dBi	Common Source, Dual	1.4 µA	600 mA
Ampleon USA Inc. ART2K0FEU	65 V	2 kW			SOT539A	SOT-539A	Chassis Mount	200 V	28.9 dBi	Common Source, Dual	2.8 µA	100 mA	400 MHz
Ampleon USA Inc. ART2K0FESU	65 V	2 kW	1 MHz	400 MHz	SOT539AN	SOT-539AN	Chassis Mount	200 V	28.9 dBi	Common Source, Dual	1.4 µA	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 65 V 600 mA 1MHz ~ 400MHz 28.9dB 2000W SOT539AN
