TAU2819,12-A
ActiveAgilink Microwires
100 FT CABLE 12COND AWG28 SHIELD
TAU2819,12-A
ActiveAgilink Microwires
100 FT CABLE 12COND AWG28 SHIELD
Description
General part information
TAU2819,12-A

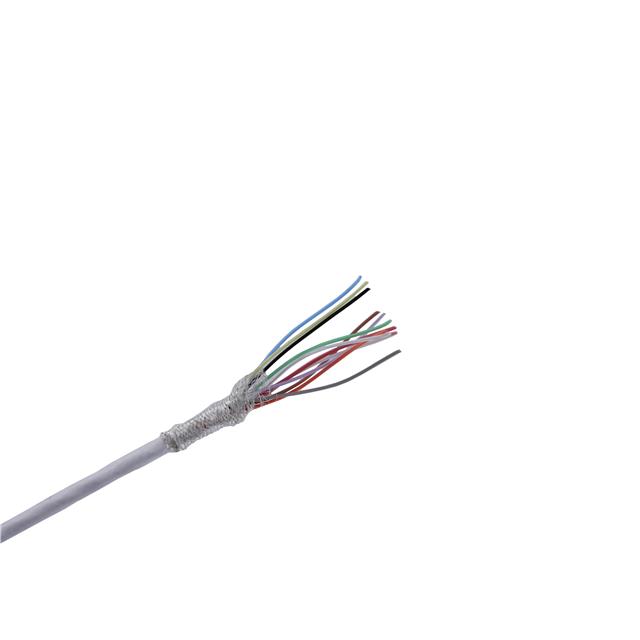

12 Conductor Multi-Conductor Cable White 28 AWG Braid 100.0' (30.5m)
Technical Specifications
Parameters and characteristics for this part
| Specification | TAU2819,12-A |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Perfluoro Alkoxy (PFA) |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand Count | 19 |
| Conductor Strand Gauge | 40 AWG |
| Jacket (Insulation) Diameter | 0.128 in |
| Jacket (Insulation) Material | Perfluoro Alkoxy (PFA) |
| Jacket (Insulation) Thickness | 0.026 in |
| Jacket Color | White |
| Length | 100 ft |
| Number of Conductors | 12 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -196 °C |
| Shield Coverage | 92 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Voltage | 600 V |
| Wire Gauge | 28 AWG |
