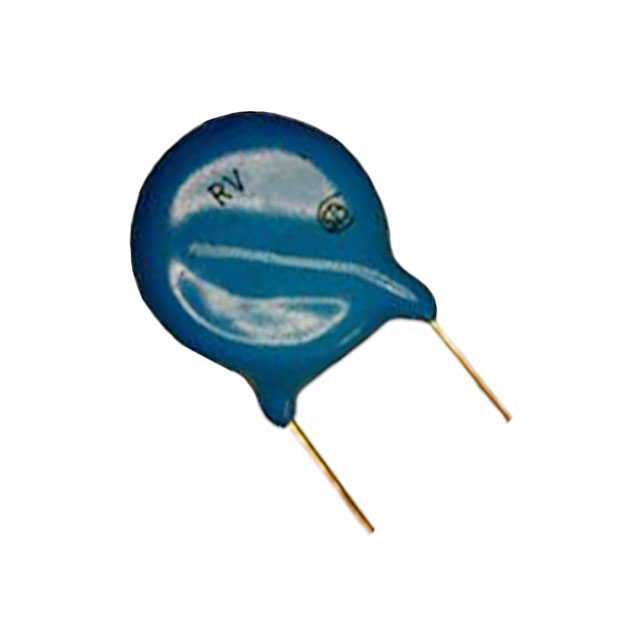

RV821K10T
ActiveStackpole Electronics Inc
VARISTOR 820V 2.5KA DISC 10MM
RV821K10T
ActiveStackpole Electronics Inc
VARISTOR 820V 2.5KA DISC 10MM
Description
General part information
RV821K10T
820 V 2.5 kA Varistor 1 Circuit Through Hole Disc 10mm
Technical Specifications
Parameters and characteristics for this part
| Specification | RV821K10T |
|---|---|
| Capacitance | 120 pF |
| Current - Surge | 2500 A |
| Energy | 85 J |
| Maximum AC Volts | 510 V |
| Maximum DC Voltage | 670 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 10 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 902 V |
| Varistor Voltage (Min) | 738 V |
| Varistor Voltage (Typ) | 820 V |
