NDTD2403C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-3.3V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDTD2403C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-3.3V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NDTD2403C | NDTD24 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 454 mA | 100 - 454 mA |
| Current - Output (Max) | 454 mA | 100 - 454 mA |
| Current - Output (Max) | - | 125 mA |
| Efficiency | 73 % | 73 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 24-DIP Module (600 mil, 8 Leads) | 24-DIP Module (600 mil, 8 Leads) |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.27 in | 1.27 in |
| Size / Dimension [x] | 32.3 mm | 32.3 mm |
| Size / Dimension [y] | 0.58 " | 0.58 " |
| Size / Dimension [y] | 14.7 mm | 14.7 mm |
| Size / Dimension [z] | 6.9 mm | 6.9 mm |
| Size / Dimension [z] | 0.27 " | 0.27 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 3.3 V | 3.3 - 15 V |
| Voltage - Output 2 | -3.3 V | -15 - -3.3 V |
NDTD24 Series
DC DC CONVERTER +/-3.3V 3W
| Part | Voltage - Output 2 | Voltage - Output 1 | Number of Outputs | Current - Output (Max) | Current - Output (Max) | Mounting Type | Voltage - Isolation | Applications | Type | Efficiency | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NDTD2403C | -3.3 V | 3.3 V | 2 | 454 mA | 454 mA | Through Hole | 1000 V | ITE (Commercial) | Isolated Module | 73 % | 18 V | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 24-DIP Module (600 mil, 8 Leads) | 3 W | 85 °C | -40 °C | 36 V | |
Murata Power Solutions Inc. NDTD2415C | -15 V | 15 V | 2 | 100 mA | 100 mA | Through Hole | 1000 V | ITE (Commercial) | Isolated Module | 18 V | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 24-DIP Module (600 mil, 8 Leads) | 3 W | 85 °C | -40 °C | 36 V | ||
Murata Power Solutions Inc. NDTD2412C | -12 V | 12 V | 2 | 125 mA | Through Hole | 1000 V | ITE (Commercial) | Isolated Module | 18 V | 6.9 mm | 0.27 " | 0.58 " | 14.7 mm | 1.27 in | 32.3 mm | 24-DIP Module (600 mil, 8 Leads) | 3 W | 85 °C | -40 °C | 36 V | 125 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NDTD24 Series

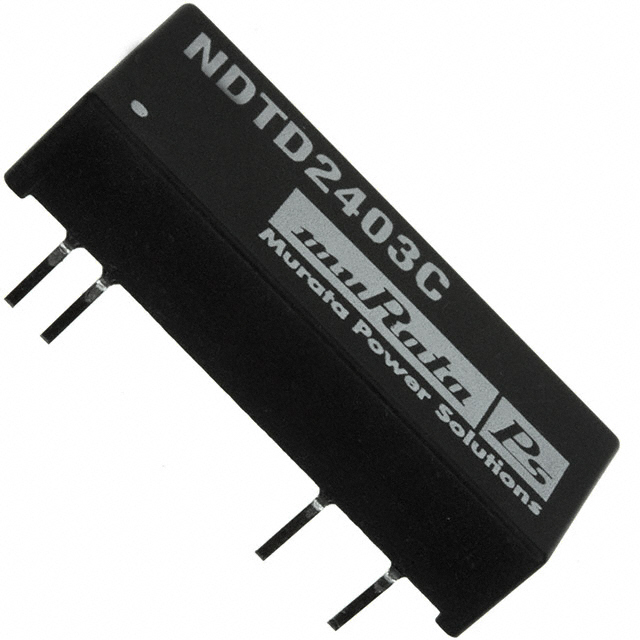

Isolated Module DC DC Converter 2 Output 3.3V -3.3V 454mA, 454mA 18V - 36V Input
