SF02-5,08

Active

TE Connectivity Raychem Cable Protection

TERM BLOCK PLUG 2POS 5.08MM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

TERM BLOCK PLUG 2POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SF02-5,08

Color	Green
Contact Material	Brass
Contact Mating Finish	Nickel
Current - IEC	16 A
Current - UL	12 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.61 in
Insulation Height	15.49 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage - IEC	450 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	7.5 mm

Part	Positions Per Level	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Current - IEC	Wire Strip Length	Voltage - IEC	Wire Gauge or Range - mm˛	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Mating Finish	Termination Style	Contact Material	Mounting Type	Material Flammability Rating	Torque - Screw	Torque - Screw	Number of Positions	Screw Size	Housing Material	Color	Current - UL	Number of Levels
TE Connectivity Raychem Cable Protection SF02-5,08	2	0.61 in	15.49 mm	0.2 in	5.08 mm	16 A	7.5 mm	450 V	2.5 mm˛	300 V	14 AWG	30 AWG	Nickel	Screw - Rising Cage Clamp	Brass	Free Hanging (In-Line)	UL94 V-0	4.4 Lb-In	0.5 Nm	2	M3	Polyamide (PA) Nylon	Green	12 A	1
Altech Corporation SF02-5,08	2	0.61 in	15.49 mm	0.2 in	5.08 mm	16 A	7.5 mm	450 V	2.5 mm˛	300 V	14 AWG	30 AWG	Nickel	Screw - Rising Cage Clamp	Brass	Free Hanging (In-Line)	UL94 V-0	4.4 Lb-In	0.5 Nm	2	M3	Polyamide (PA) Nylon	Green	12 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

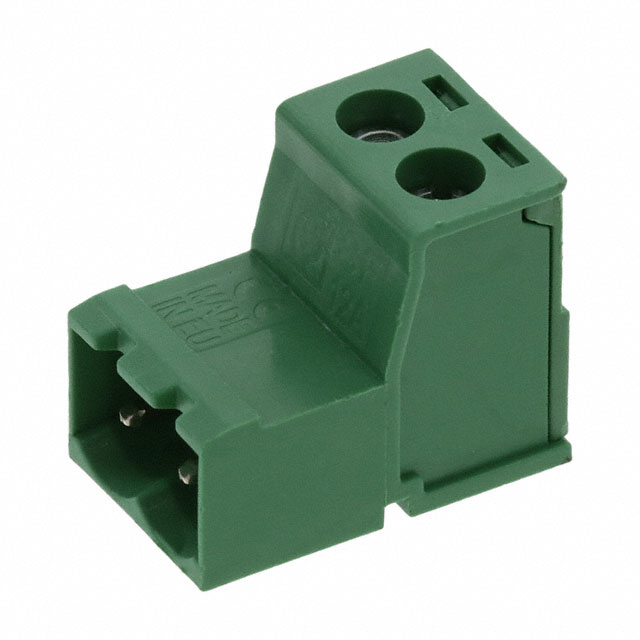

2 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line)
