2510CT

Active

Staco Energy Products Company

VARIABLE, MANUALLY OPERATED & MOTOR DRIVEN, SINGLE PHASE, 50HZ / 60HZ, 120V, 140V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2510CT

Active

Staco Energy Products Company

VARIABLE, MANUALLY OPERATED & MOTOR DRIVEN, SINGLE PHASE, 50HZ / 60HZ, 120V, 140V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1370.00
Newark	Each	1	$ 1468.80
		5	$ 1408.32
		10	$ 1356.48
		25	$ 1287.36
		50	$ 1261.44

Description

General part information

2510 Series

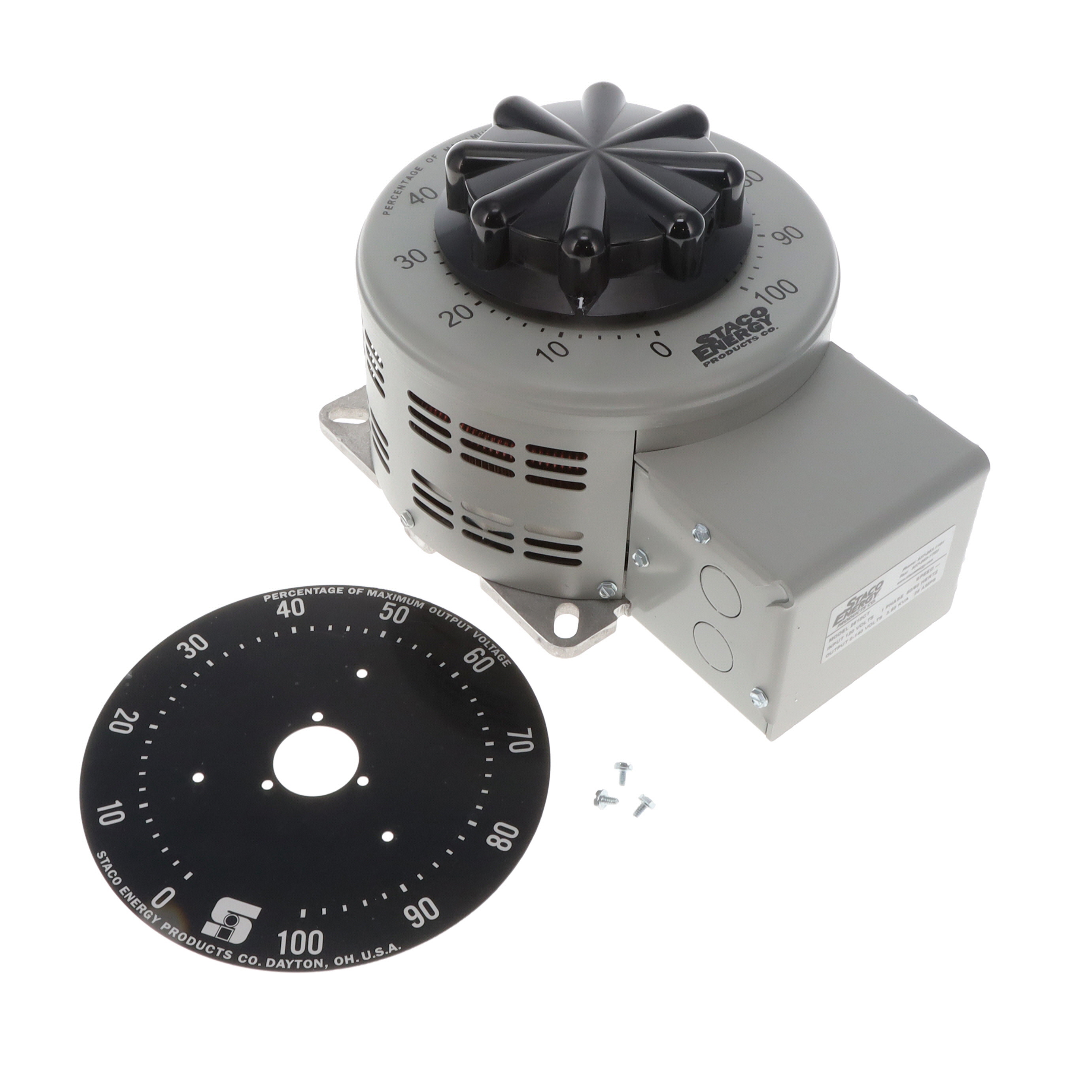

The 2510CT is a Variable Transformer represents a compact high current variable transformer design. It can be operated at frequencies between 50 and 2000Hz with derating at higher than rated frequency. The 2500 series transformer has case which also includes a terminal box cover with knock-outs to accept conduit.

Specification	2510CT	2510 Series

Constant Current Load - Max	3.5 kVA	3.5 kVA
Constant Current Load - Max	-	10.5 kVA
Constant Current Load - Max [Max]	25 A	25 - 75 A
Output Type	Terminals	Terminals
Size	-	398.02 mm
Size	-	222.25 mm
Size [x]	7.95 "	7.95 - 10.77 in
Size [x]	201.93 mm	201.93 - 273.56 mm
Size [y]	268.22 mm	222.25 - 268.22 mm
Size [y]	10.56 "	8.75 - 10.56 in
Size [z]	118.36 mm	118.36 - 390.91 mm
Size [z]	4.66 "	4.66 - 15.67 in
Type	Panel Mount	Panel Mount
Voltage - Output	120 VAC, 140 VAC	120 - 280 VAC
Voltage - Supply	120 VAC	120 - 240 VAC

Part	Type	Output Type	Voltage - Supply	Size [x]	Size [x]	Size [y]	Size [z]	Size [y]	Size [z]	Constant Current Load - Max [Max]	Voltage - Output	Constant Current Load - Max	Constant Current Load - Max	Size [z]	Size [y]
Staco Energy Products Company 2510-2	Panel Mount	Terminals	120 VAC, 240 VAC	219.71 mm	8.65 in	8.75 in	10.38 in	222.25 mm	263.65 mm	50 A	120 VAC, 140 VAC, 240 VAC, 280 VAC
Staco Energy Products Company 2510CT-2	Panel Mount	Terminals	120 VAC, 240 VAC	273.56 mm	10.77 in	8.75 in	10.67 in	222.25 mm	271.02 mm	50 A	120 VAC, 140 VAC, 240 VAC, 280 VAC
Staco Energy Products Company 2510CT	Panel Mount	Terminals	120 VAC	201.93 mm	7.95 "	10.56 "	4.66 "	268.22 mm	118.36 mm	25 A	120 VAC, 140 VAC	3.5 kVA
Staco Energy Products Company 2510-3	Panel Mount	Terminals	120 VAC, 240 VAC	219.71 mm	8.65 in	8.75 in	15.39 in	222.25 mm	390.91 mm	75 A	120 VAC, 140 VAC, 240 VAC, 280 VAC		10.5 kVA
Staco Energy Products Company 2510CT-3	Panel Mount	Terminals	120 VAC, 240 VAC	273.56 mm	10.77 in	8.75 in	15.67 in			75 A	120 VAC, 140 VAC, 240 VAC, 280 VAC		10.5 kVA	398.02 mm	222.25 mm
