WH2004AR-TFH-JT

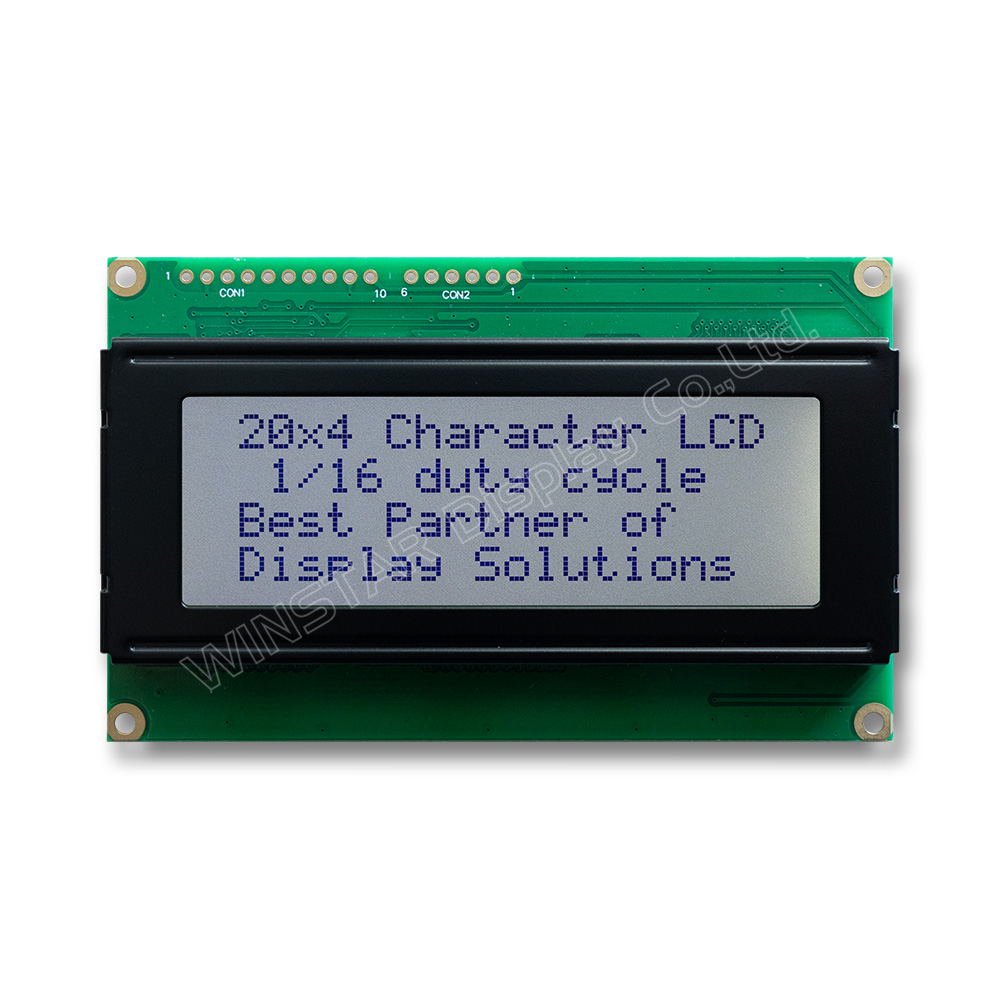

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White 98.00mm x 60.00mm x 13.60mm
Technical Specifications
Parameters and characteristics for this part
| Specification | WH2004AR-TFH-JT |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 4.75 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 2.95 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066 |
| Display Columns | 20 |
| Display Mode | Transflective |
| Display Rows | 4 |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Size Height | 0.55 mm |
| Dot Size Width | 0.55 mm |
| Number of Characters | 80 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.6 mm |
| Outline Length | 98 mm |
| Outline Width | 60 mm |
| Viewing Area Height | 25.2 mm |
| Viewing Area Width | 77 mm |
| Voltage - Supply (Maximum) | 4.35 V |
| Voltage - Supply (Minimum) | 3.75 V |
