ZM10B10A01

Active

Honeywell Sensing and Productivity Solutions

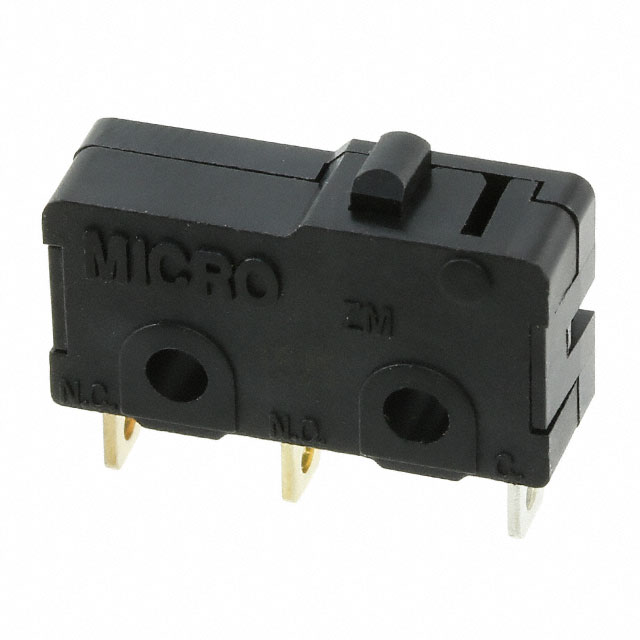

SWITCH SNAP ACT SPDT 100MA 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZM10B10A01	ZM10B Series

Actuator Type	Round (Pin Plunger)	Round (Pin Plunger), Lever, Straight
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	100 mA
Differential Travel	0.008 in	0.008 in
Differential Travel	0.2 mm	0.2 mm
Electrical Life	10000 Cycles	10000 Cycles
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	60 gf	60 gf
Operating Position	0.449 in	0.449 in
Operating Position	11.4 mm	11.4 mm
Operating Position	-	0.35 in
Operating Position	-	8.9 mm
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.4 mm	0.4 - 0.76 mm
Overtravel	0.015 "	0.015 - 0.03 "
Pretravel	0.043 "	0.043 - 0.24 "
Pretravel	1.1 mm	1.1 - 6.1 mm
Release Force	8 gf	8 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Quick Connect - 0.110" (2.8mm), Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Mounting Type	Switch Function	Release Force	Actuator Type	Termination Style	Overtravel	Overtravel	Operating Force	Mechanical Life	Circuit	Voltage Rating - DC	Operating Position	Operating Position	Differential Travel	Differential Travel	Electrical Life	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions ZM10B70A01	Chassis Mount	On-Mom	8 gf	Round (Pin Plunger)	Quick Connect - 0.110" (2.8mm)	0.4 mm	0.015 "	60 gf	10000000 Cycles	SPDT	30 V	0.449 in	11.4 mm	0.008 in	0.2 mm	10000 Cycles	0.043 "	1.1 mm	-40 °C	120 °C	125 V	100 mA
Honeywell Sensing and Productivity Solutions ZM10B10D01	Chassis Mount	On-Mom	8 gf	Lever, Straight	Solder Lug	0.76 mm	0.03 in	60 gf	10000000 Cycles	SPDT	30 V					10000 Cycles	0.24 in	6.1 mm	-40 °C	120 °C	125 V	100 mA	0.35 in	8.9 mm
Honeywell Sensing and Productivity Solutions ZM10B10A01	Chassis Mount	On-Mom	8 gf	Round (Pin Plunger)	Solder Lug	0.4 mm	0.015 "	60 gf	10000000 Cycles	SPDT	30 V	0.449 in	11.4 mm	0.008 in	0.2 mm	10000 Cycles	0.043 "	1.1 mm	-40 °C	120 °C	125 V	100 mA
