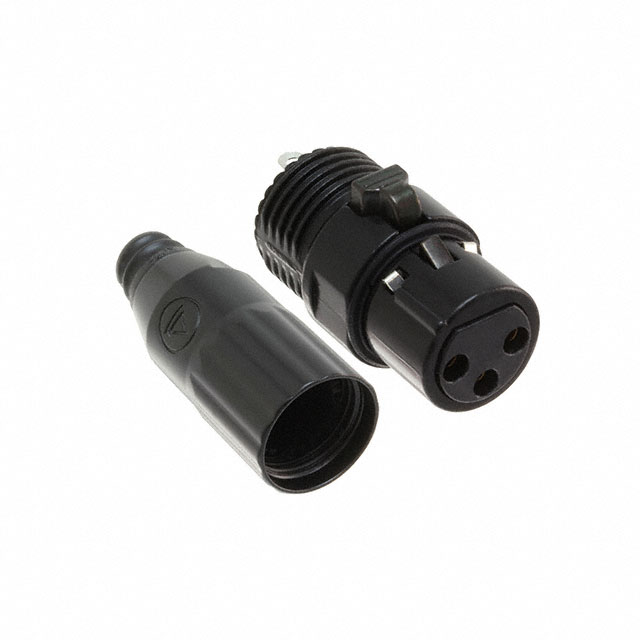

CONN XLR CONNECTOR F 3 POS ST CABLE MOUNT 3 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AAA3FBAUZ
ActiveSwitchcraft Inc.
CONN XLR CONNECTOR F 3 POS ST CABLE MOUNT 3 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AAA3FBAUZ | AAA3FB Series |
|---|---|---|
| Applications | Audio, Industrial, Instrumentation, Medical | Audio, Instrumentation, Audio, Industrial, Instrumentation, Medical |
| Backshell Material, Plating | Chrome, Zinc | Chrome, Zinc, Thermoplastic |
| Cable Opening | - | 0.15 in |
| Cable Opening | - | 3.81 mm |
| Cable Opening | - | 7.24 mm |
| Cable Opening | - | 0.285 in |
| Cable Opening | - | 0.205 - 5.21 mm |
| Cable Opening | - | 0.145 - 3.68 in |
| Cable Opening [diameter] | 2.54 mm, 5.59 mm | 2.54 - 5.59 mm |
| Cable Opening [diameter] | 0.1 in, 0.22 in | 0.1 - 0.22 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 15 A | 15 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp | Backshell, Strain Relief, Ground, Cable Clamp |
| Ingress Protection | - | IP66 |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature | - | 65 °C |
| Operating Temperature | - | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome, Black Painted |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Size - Insert | XLR | XLR |
| Shielding | Shielded | Shielded |
| Voltage Rating | 125 VAC | 125 VAC |
AAA3FB Series
CONN XLR CONNECTOR F 3 POS ST CABLE MOUNT 3 TERMINAL 1 PORT
| Part | Contact Material | Features | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Mounting Type | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Backshell Material, Plating | Ingress Protection | Contact Finish - Mating | Primary Material | Shell Size - Insert | Color | Orientation | Shell Finish | Applications | Fastening Type | Shell Material | Shielding | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. AAA3FBZH | Copper Alloy | Backshell, Cable Clamp, Ground, Strain Relief | 0.15 in | 3.81 mm | 7.24 mm | 0.285 in | Free Hanging (In-Line) | Thermoplastic | 65 °C | -40 °C | Female Sockets, Plug | Chrome, Zinc | IP66 | Silver | Metal | XLR | Black | Keyed | Chrome | Audio, Instrumentation | Latch Lock | Zinc Alloy | Shielded | ||||||
Switchcraft Inc. AAA3FBYYLP | Copper Alloy | Backshell, Ground, Strain Relief | Free Hanging (In-Line) | Thermoplastic | Female Sockets, Plug | Thermoplastic | Silver | Metal | XLR | Keyed | Black Painted | Audio, Instrumentation | Latch Lock | Zinc Alloy | Shielded | 0.205 in, 5.21 mm | 0.145 in, 3.68 mm | ||||||||||||
Switchcraft Inc. AAA3FBAUZ | Copper Alloy | Backshell, Cable Clamp, Ground, Strain Relief | Free Hanging (In-Line) | Thermoplastic | Female Sockets, Plug | Chrome, Zinc | Gold | Metal | XLR | Black | Keyed | Chrome | Audio, Industrial, Instrumentation, Medical | Latch Lock | Zinc Alloy | Shielded | 2.54 mm, 5.59 mm | 0.1 in, 0.22 in | 15 A | 125 VAC | |||||||||
Switchcraft Inc. AAA3FBAUZH | Copper Alloy | Backshell, Cable Clamp, Ground, Strain Relief | 0.15 in | 3.81 mm | 7.24 mm | 0.285 in | Free Hanging (In-Line) | Thermoplastic | 65 °C | -40 °C | Female Sockets, Plug | Chrome, Zinc | IP66 | Gold | Metal | XLR | Black | Keyed | Chrome | Audio, Instrumentation | Latch Lock | Zinc Alloy | Shielded | ||||||
Switchcraft Inc. AAA3FBZ | Copper Alloy | Backshell, Cable Clamp, Ground, Strain Relief | Free Hanging (In-Line) | Thermoplastic | Female Sockets, Plug | Chrome, Zinc | Silver | Metal | XLR | Black | Keyed | Chrome | Audio, Industrial, Instrumentation, Medical | Latch Lock | Zinc Alloy | Shielded | 2.54 mm, 5.59 mm | 0.1 in, 0.22 in | 15 A | 125 VAC |
