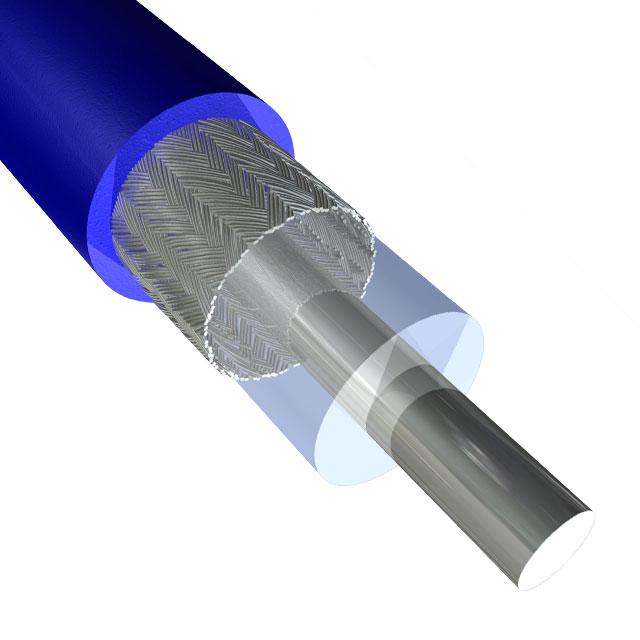

1000670027

Active

Molex - Temp Flex

CABLE COAXIAL 29AWG 5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1000670027

Active

Molex - Temp Flex

CABLE COAXIAL 29AWG 5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1000670027	100067 Series

Cable Type	Coaxial	Coaxial
Conductor Material	Copper, Silver Coated	Copper, Silver Coated
Dielectric Diameter [diameter]	0.94 mm	0.91 - 2.97 mm
Dielectric Diameter [diameter]	0.037 in	0.036 - 0.117 in
Dielectric Material	Fluorinated Ethylene-Propylene (FEP®)	Fluorinated Ethylene-Propylene (FEP®), Perfluoroalkoxy (PFA)
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	1.42 mm	1.42 - 4.01 mm
Jacket (Insulation) Diameter [diameter]	0.056 in	0.056 - 0.158 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP), Fluorinated Ethylene-Propylene, Tinted (FEP)
Jacket Color	Blue	Blue
Length	15.24 m	7.62 - 60.96 m
Length	50 ft	25 - 200 ft
Length	-	Enter Number of Feet in Order Quantity
Length [x]	3.05 m	3.05 - 300 mm
Length [x]	10 ft	1 - 100 ft
Operating Temperature [Max]	165 °C	150 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Coverage	90 %, 100 %	85 - 100 %
Shield Material	Copper, Silver Coated	Copper, Silver Coated
Shield Type	Foil, Braid	Foil, Braid
Spool Size	-	5000 '
Spool Size	-	1524 m
VoP, Velocity of Propagation	70	70
Wire Gauge	29 AWG	19 - 29 AWG

100067 Series

CABLE COAXIAL 19AWG 1'

Part	Cable Type	Conductor Material	Dielectric Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	VoP, Velocity of Propagation	Shield Material	Jacket (Insulation) Material	Length [x]	Length [x]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Wire Gauge	Impedance	Shield Coverage	Length	Length	Spool Size	Spool Size	Length
Molex - Temp Flex 1000670032	Coaxial	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP®)	Blue	-65 ░C	150 °C	70	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)	1 ft, 100 ft	30.48 m, 300 mm	0.117 in	2.97 mm	0.157 in	3.99 mm	Braid, Foil	19 AWG	50 Ohms	85 %, 100 %
Molex - Temp Flex 1000670027	Coaxial	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP®)	Blue	-65 ░C	165 °C	70	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)	10 ft	3.05 m	0.037 in	0.94 mm	0.056 in	1.42 mm	Braid, Foil	29 AWG	50 Ohms	90 %, 100 %	15.24 m	50 ft
Molex - Temp Flex 1000671086	Coaxial	Copper, Silver Coated	Perfluoroalkoxy (PFA)		-65 ░C	165 °C	70	Copper, Silver Coated	Fluorinated Ethylene-Propylene, Tinted (FEP)	10 ft, 100 ft	3.05 m, 30.48 m	0.065 "	1.65 mm	0.101 "	2.57 mm	Braid, Foil	24 AWG	50 Ohms		7.62 m, 60.96 m	25 ft, 200 '	5000 '	1524 m	Enter Number of Feet in Order Quantity
Molex - Temp Flex 1000671141	Coaxial	Copper, Silver Coated	Perfluoroalkoxy (PFA)	Blue	-65 ░C	165 °C	70	Copper, Silver Coated	Fluorinated Ethylene-Propylene, Tinted (FEP)	100 ft	30.48 m	0.117 in	2.97 mm	0.158 in	4.01 mm	Braid, Foil	19 AWG	50 Ohms		15.24 m, 60.96 m	50 ft, 200 '	5000 '	1524 m	Enter Number of Feet in Order Quantity
Molex - Temp Flex 1000671047	Coaxial	Copper, Silver Coated	Perfluoroalkoxy (PFA)	Blue	-65 ░C	150 °C	70	Copper, Silver Coated	Fluorinated Ethylene-Propylene, Tinted (FEP)	1 ft	300 mm	0.036 in	0.91 mm	0.056 in	1.42 mm	Braid, Foil	29 AWG	50 Ohms	89 %	7.62 m, 60.96 m	25 ft, 200 '	5000 '	1524 m	Enter Number of Feet in Order Quantity
Molex - Temp Flex 1000670031	Coaxial	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP®)	Blue	-65 ░C	150 °C	70	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)	1 ft, 100 ft	30.48 m, 300 mm	0.065 "	1.65 mm	0.101 "	2.57 mm	Braid, Foil	24 AWG	50 Ohms	90 %, 100 %	7.62 m, 15.24 m	25 ft, 50 ft	5000 '	1524 m	Enter Number of Feet in Order Quantity

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 33.70
		1	$ 66.16
		1	$ 329.99
		3	$ 61.20
		3	$ 31.21
		3	$ 305.28
		5	$ 294.69
		5	$ 30.15
		5	$ 59.08
		7	$ 57.67
		7	$ 287.64
		7	$ 29.44
		10	$ 28.73
		10	$ 280.58
		10	$ 56.25
		25	$ 262.93
		25	$ 26.96
		25	$ 52.71
		50	$ 25.54
		50	$ 49.88
		100	$ 47.76
		100	$ 24.30

Description

General part information

100067 Series

Coaxial Cable 29 AWG 5.0' (1.52m) 50 Ohms
