1989887
ActivePhoenix Contact
CONN PC TERMINAL BLOCK 16 POS 2.5MM SOLDER ST THRU-HOLE 2A
1989887
ActivePhoenix Contact
CONN PC TERMINAL BLOCK 16 POS 2.5MM SOLDER ST THRU-HOLE 2A
Description
General part information
1989887

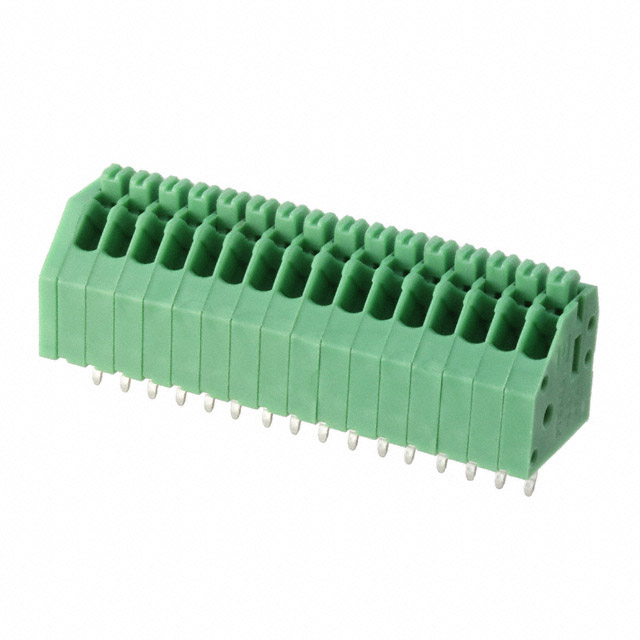

16 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.098" (2.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1989887 |
|---|---|
| Color | Green |
| Current | 2 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
| Positions Per Level | 16 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring, Spring Cage, Tension Clamp |
